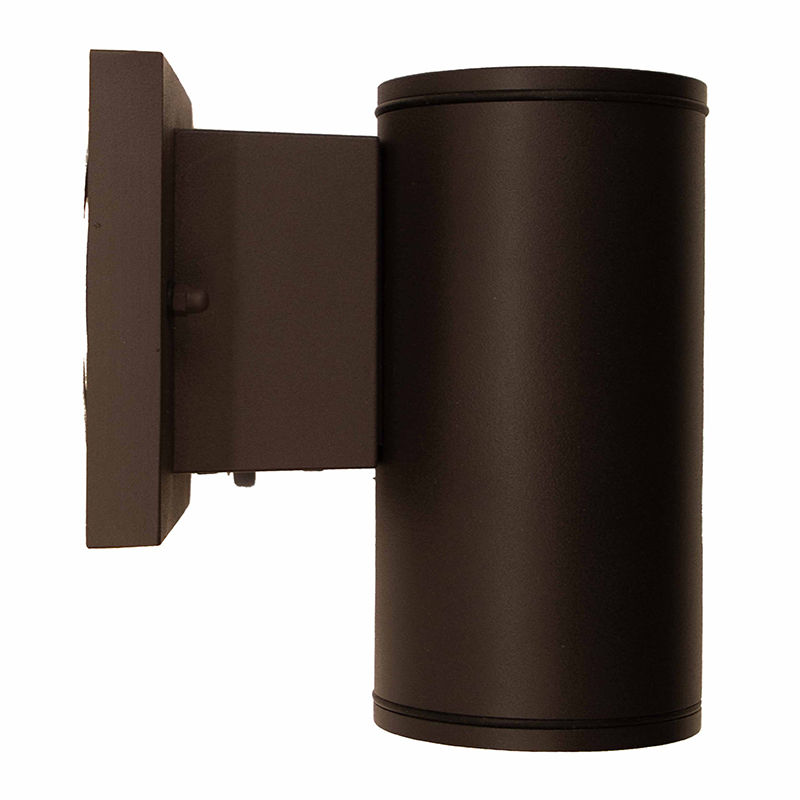

WMC2-DL-MCT-BR-DT

:: Voltage: 120V AC
:: Power Factor: >0.90
:: Wattage: 6W
:: Efficacy: 66 LPW
:: THD: <20%
:: Housing: Die-cast Aluminum & Glass
:: Finish: Black, Bronze, Brushed Nickel & White
:: Maximum Ambient Temperature: -68°F to 104°F
:: Suitable for Wet Location
:: Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
:: Total Lumens: 400LM
:: Color Temperatures: 3000K/4000K/5000K

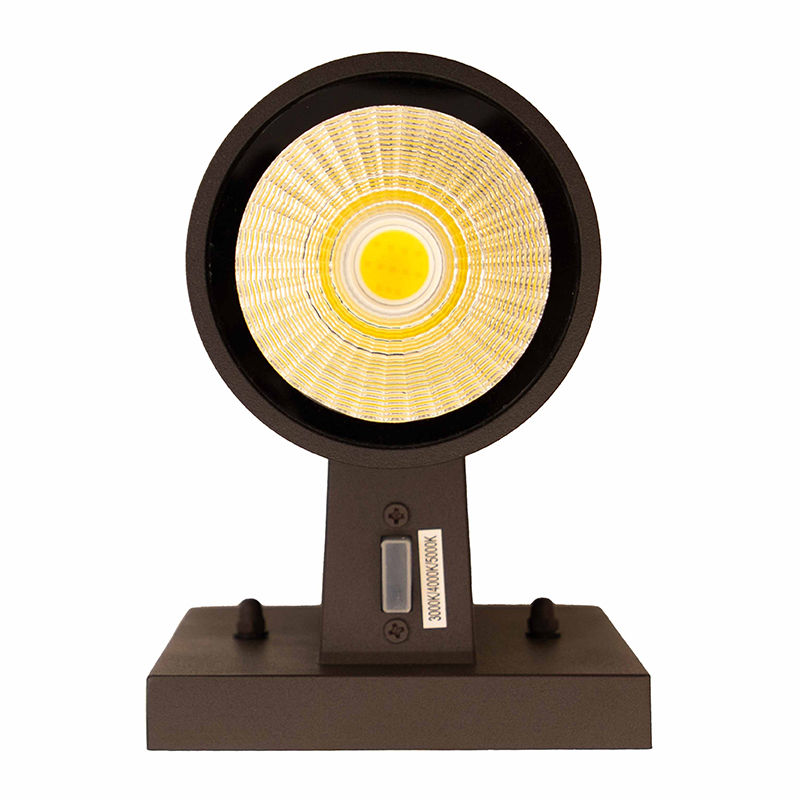

:: Multi CCT (Selectable Switch on the Back of the Bracket, Protected by Silicon Cover to be Waterproof)
:: Color Rendering Index: CRI ≥ 80
:: Rated life: 70,000 hrs
:: Beam angle: 45º

:: Ideal for general site lighting, walkways, stairways, alleys, loading docks, doorways, pathways and parking areas.

OPTIONS

OPT-PC-B

OPT-EM-WMC
