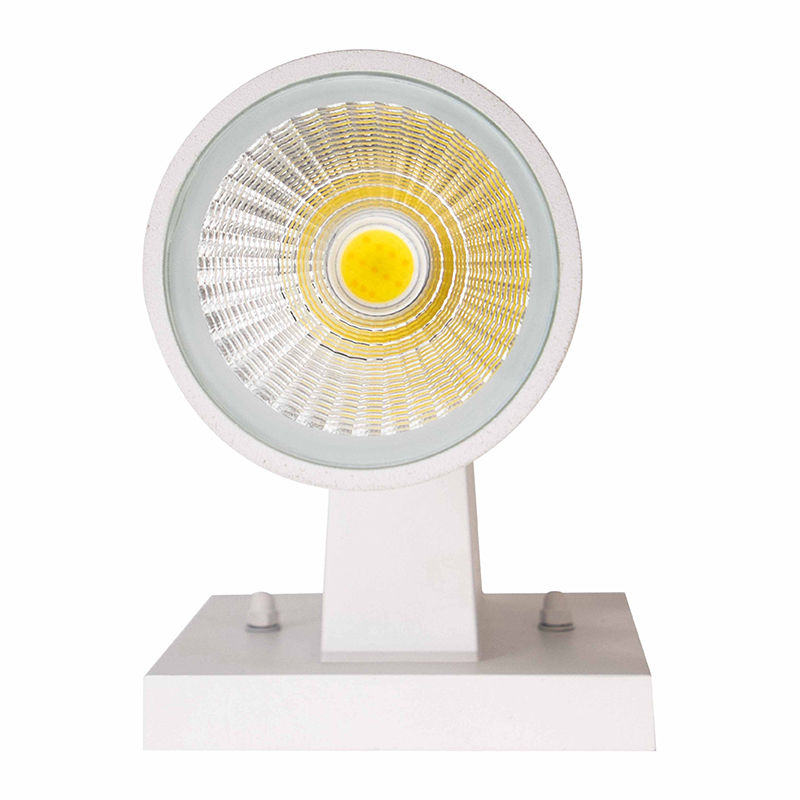

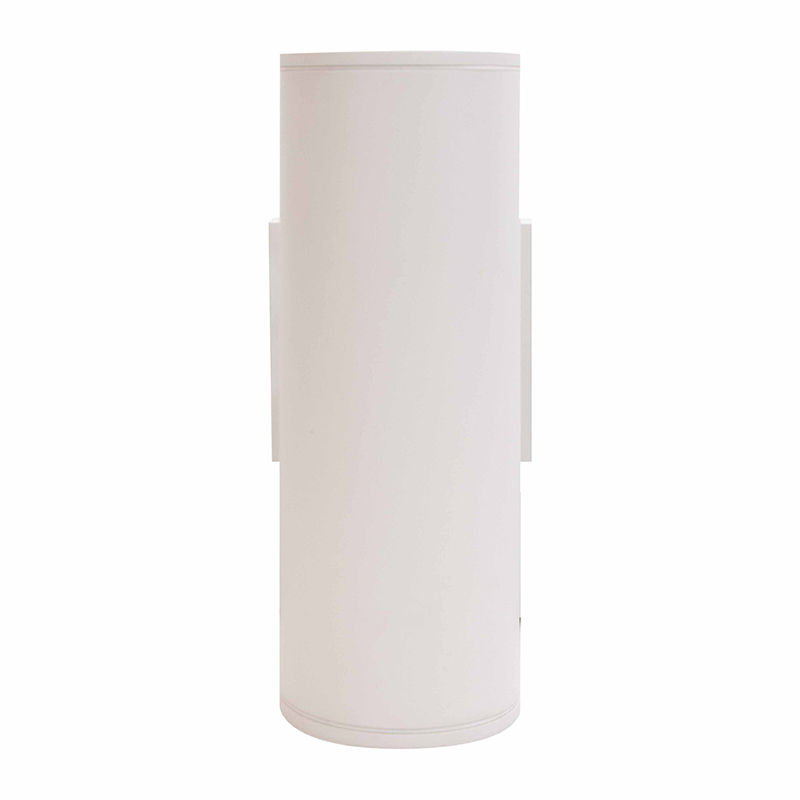

WMC2-UDL-MCT-WH-DT

:: Voltage: 120V AC
:: Power Factor: >0.90
:: Wattage: 6W (Down light); 12W (Up/Down light, 6W per end)
:: Efficacy: 80 LPW
:: THD: <20%
:: Housing: Die-cast Aluminum & Glass
:: Finish: Black, Bronze, Brushed Nickel & White
:: Maximum Ambient Temperature: -68°F to 104°F
:: Suitable for Wet Location
:: Dimming: TRIAC Dimming (Using Standard TRIAC
:: LED Dimmers)
:: Total Lumens: 800LM
:: Color Temperatures: 3000K/4000K/5000K
:: Multi CCT (Selectable Switch on the Back of the Bracket, Protected by Silicon Cover to be Waterproof)
:: Color Rendering Index: CRI ≥ 80
:: Rated life: 70,000 hrs
:: Beam angle: 45º for each side

:: Ideal for general site lighting, walkways, stairways, alleys, loading docks, doorways, pathways and parking areas.

OPTIONS

OPT-PC-B

OPT-EM-WMC
