SPEC SHEET

XTN4X-2RBEM

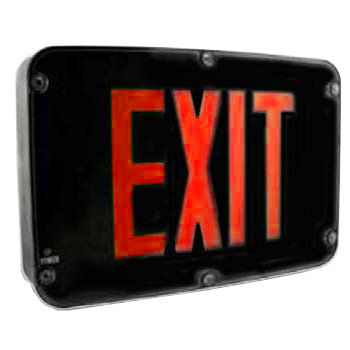

NEMA 4X Rated LED Exit Signs

Technical Specs

  • :: NEMA 4X Wet Location rated.
  • :: UV stabilized polycarbonate housing and lens, 5VA flame rating
  • :: Impact resistant housing with seamless silicon gasket
  • :: Energy efficient LED panel, 3.2 watts (red) 3.8 watts (green), 25-year rated
  • :: 120/277-volt
  • :: Operating temperature: 68-122°F
  • :: Universal canopy for side or top mount (for wall and ceiling installation)
  • :: Easy snap-out left or right arrows
  • :: 4.8V maintenance free Ni-Cad battery for long life
  • :: Low profile compact design, available in white only
  • :: 90-minute rated with push style test switch and red indicator light
  • :: Top or back mount only—single face only
  • :: Cold weather -4°F minimum operating temperature
  • :: UL-listed for wet locations, meets UL924, NFPA 101 Life Safety Code
  • :: NEMA4X and NSF rated
  • :: 3-year warranty

Applications

  • ::An exit sign is a device in a public facility (such as a building, aircraft, or boat) denoting the location of the closest emergency exit in case of fire or other emergency. Most relevant codes (fire, building, health, or safety) require exit signs to be permanently lit.

Features

  • UL Listed
  • Wet Location
  • 3 year warranty
