CDL2-45WW

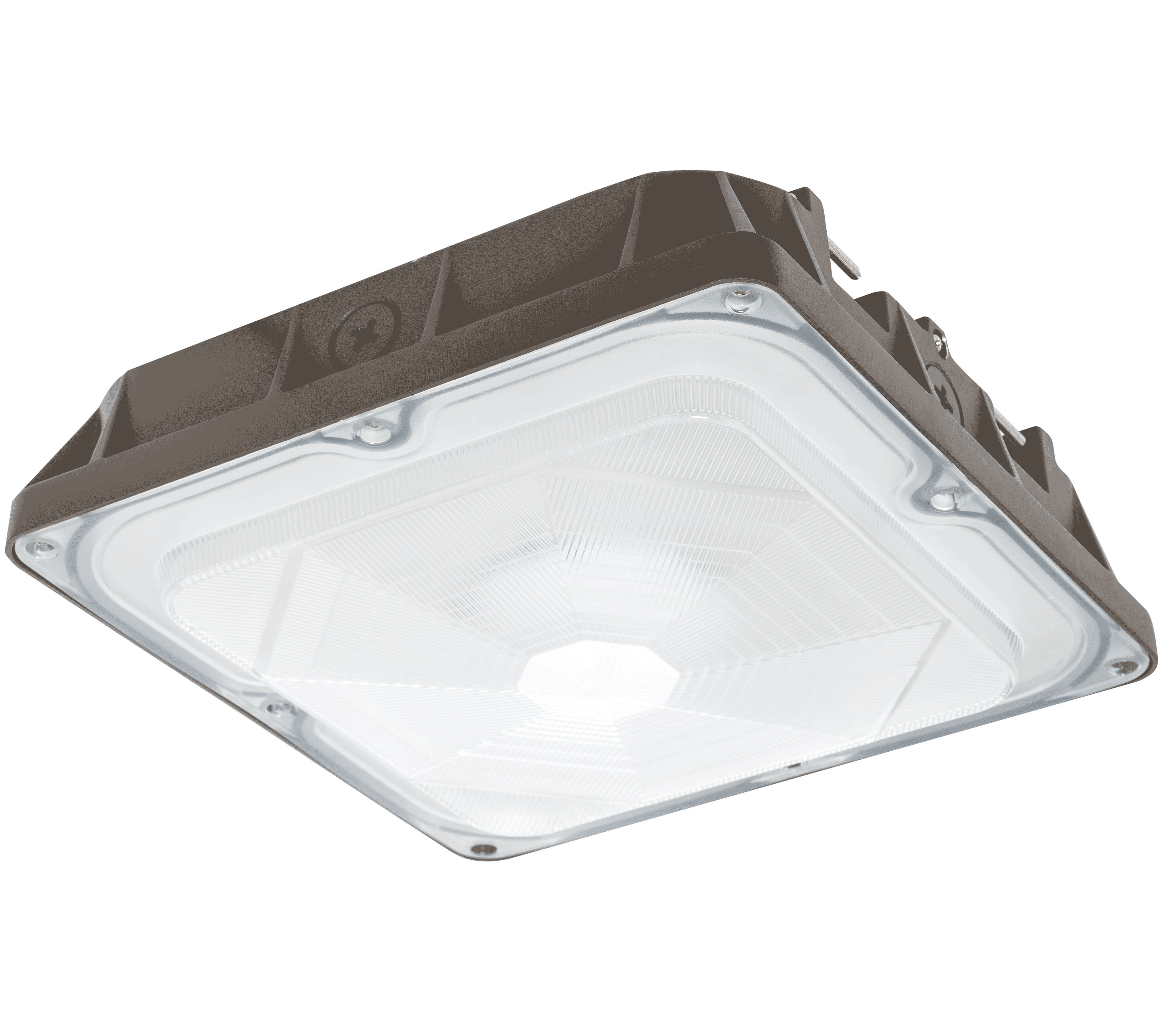

LED Low Profile Canopy/Garage Light, 45W, 3000K
Technical Specs
- :: Input Wattage: 45W
- :: Input Current: 0.6A MAX
- :: Input Voltage: 120-277VAC 50/60Hz
- :: Power factor: >0.90
- :: Other wattages: 25W/ 60W/ 80W
- :: Die-cast aluminum with bronze
- :: Four 1/2” threaded hubs located on four sides of the housing
- :: Prismatic polycarbonate lens
- :: Lifespan: 70000 Hrs
- :: Operating temperature: -4°F ~ 104°F
- :: IP rating: IP65, Wet Locations
- :: Dimming: 0~10V dimmable
- :: LED type/ Brand: SMD 3030/ Philips Lumileds LEDs
- :: Total lumens: 4200 LM/ 4300 LM/ 4400 LM
- :: Color temperature: 3000K/4000K/5000K
- :: Color rendering index: >80
- :: Beam angle: 150°
Applications
- :: Ideal for indoor parking lots, commercial buildings, schools, warehouses, retail centers, apartment complexes. Designed for 9 to 16-foot mounting.
