CL-HL-125W-50K-E39-NRW

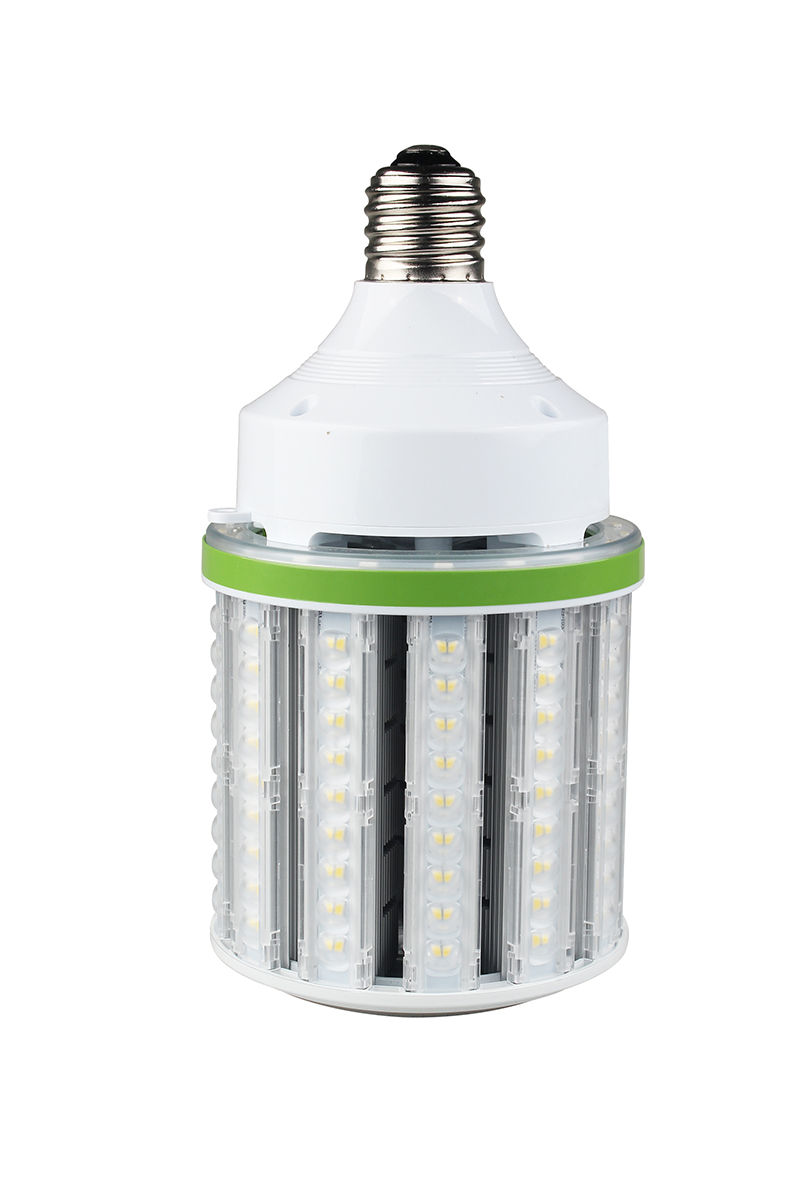

High-Lumen LED Corn Lamp, 125W, 5000K
Technical Specs
- :: Voltage: 120~277VAC, 50/60Hz
- :: Wattage: 125W
- :: Power factor: 0.90
- :: Efficacy: 130LM/W
- :: Improved heat sink, No fan
- :: Led on the bottom as well to reach 360° beam angle
- :: Lamp plastic housing and Sealant pouring for whole driver
- :: Minimum Enclosed Space Dimension: 17.7”(H) x 11.0”(D) and 2153 Cubic in.
- :: Operating temperature: -4°F to 149°F
- :: Suitable for damp location
- :: Directional Beam Suitable for High Bay Lights
- :: Lamp Base: E39 Mogul Base
- :: Total lumens: 16250LM
- :: Color temperature: 5000K
- :: Color rendering index: >80
- :: Beam angle: 360°
Applications
- :: Ideal for retrofitting existing HID highbay, shoebox, flood light or wall pack fixtures NOTE: FOR 125W OR BELOW: IF USED IN ENCLOSED FIXTURE, CHECK SPEC SHEET FOR MINIMUM SPACE REQUIRED FOR 200W OR ABOVE: : DO NOT USE THE LAMPS IN ENCLOSED FIXTURES
