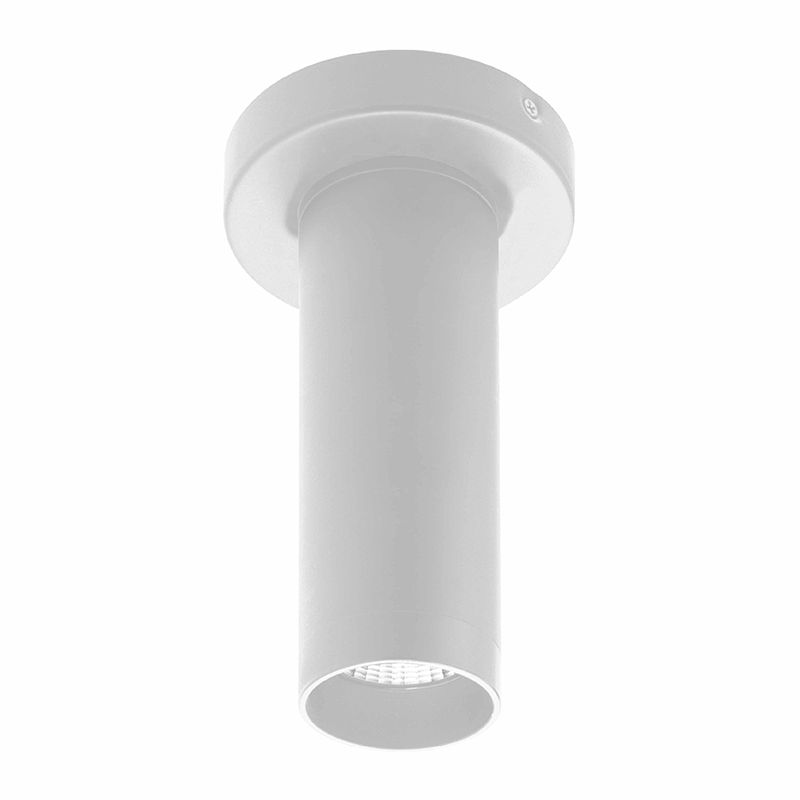

CMC2-MCT-DT-WH

2" Round Architectural Ceiling & Suspended Cylinder Lights, 6W, 3000K/4000K/5000K

Technical Specs

:: Voltage: 120V, 60Hz
:: Power Factor: >0.90
:: THD: <20%
:: Wattage: 6W
:: Efficacy: 75 LPW
:: Aluminum Housing & Glass Lens
:: Suspension Cable & Canopy Set Accessories Avail.
:: Universal Swivel W/ Rod Kit Accessories Avail. Ambient Operating Temperature: -13ºF to 113ºF
:: Rated life: 70,000 hrs
:: IP Rating: IP40 suitable for damp locations
:: Dimming: Dimmable Down to 10% Using a Standard TRIAC LED Dimmer TRIAC logo
:: Total Lumens: 450LM
:: Color Temperatures: 3000K/ 4000K/ 5000K
:: Color Rendering Index: CRI ≥ 80
:: Beam Angle: 40°

Applications

:: 2" Cylinder, Pendant & Ceiling Cylinder Light, Aluminum Cylinder, White Aluminum Housing, Polycarbonate (PC) Lens

Features

ACCESSORIES

Product Name	Description
CMC-SRK-218-5C-WH SPEC	Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, White
CMC-SRK-218-5C-BK SPEC	Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, Black
CMC-SRK-224-5C-WH SPEC	Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, White
CMC-SRK-224-5C-BK SPEC	Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, Black
CMC2-HCDK-BK SPEC	2-inch ceiling mount cylinder honeycomb diffuser kit, Black
CMC2-HCDK-AG SPEC	2-inch ceiling mount cylinder honeycomb diffuser kit, Anodized Gold (AG)
CMC2-DS-BG SPEC	Decorative Shield Reflector Replacement For Lens Cap Of CMC2, Black Gold
CMC2-DS-WG SPEC	Decorative Shield Reflector Replacement For Lens Cap Of CMC2, White Gold
CMC2-DCR-BG SPEC	Decorative Cone Reflector Replacement For Lens Cap Of CMC2, Black Gold
CMC2-DCR-WG SPEC	Decorative Cone Reflector Replacement For Lens Cap Of CMC2, Black Gold
CMC-CS-8FT-BK SPEC	Suspension Cable & Canopy Set For CMC Series, 8FT, 5-wire, Black
CMC-CS-8FT-WH SPEC	Suspension Cable & Canopy Set for CMC Series, 8FT, 5-Wire, White
CMC2-TRM-AG SPEC	2-inch ceiling mount cylinder trim, Anodized Gold (AG)
CMC2-TRM-BN SPEC	2-inch ceiling mount cylinder trim, Brushed Nickel (BN)
CMC-JBCK-BK SPEC	Cylinder And Pendant Lighting J-Box Cover Canopy
CMC-JBCK-WH SPEC	Cylinder And Pendant Lighting J-Box Cover Canopy
CMC2-TRMWM-AG SPEC	2In Ceiling Mount Cylinder Trim, Anodized Gold
CMC2-TRMWM-BN SPEC	2In Ceiling Mount Cylinder Trim, Wide-Mouth Version, Brushed Nickel
CMC2-PS12-WG-KIT SPEC	CMC2 12in Pan Shade, White/Gold
CMC2-PS12-BG-KIT SPEC	CMC2 12in Pan Shade, Black/Gold
CMC2-PS14-WG-KIT SPEC	CMC2 14in Pan Shade, White/Gold
CMC2-PS14-BG-KIT SPEC	CMC2 14in Pan Shade, Black/Gold
