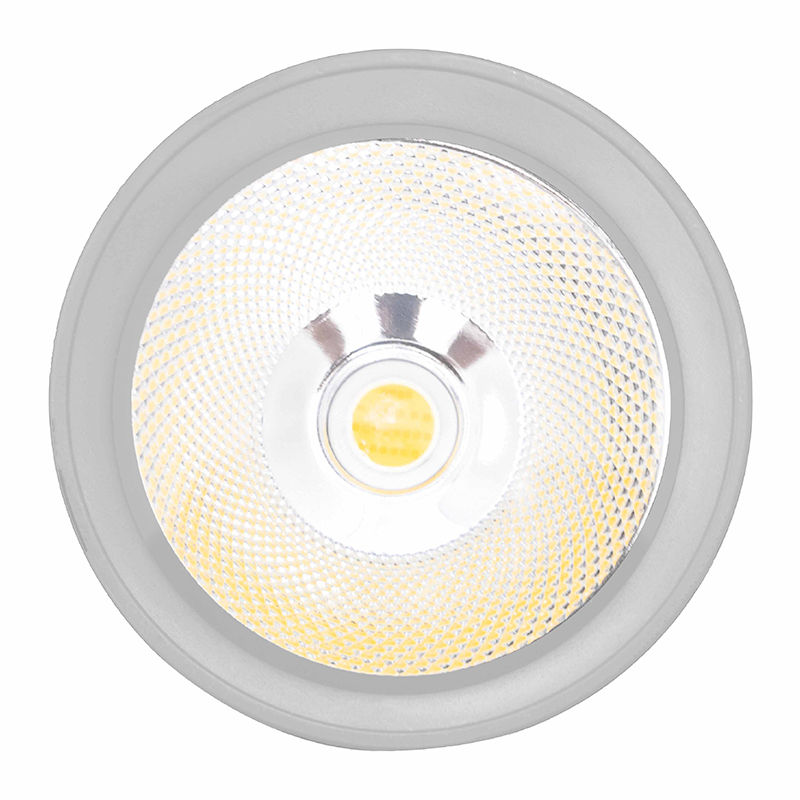

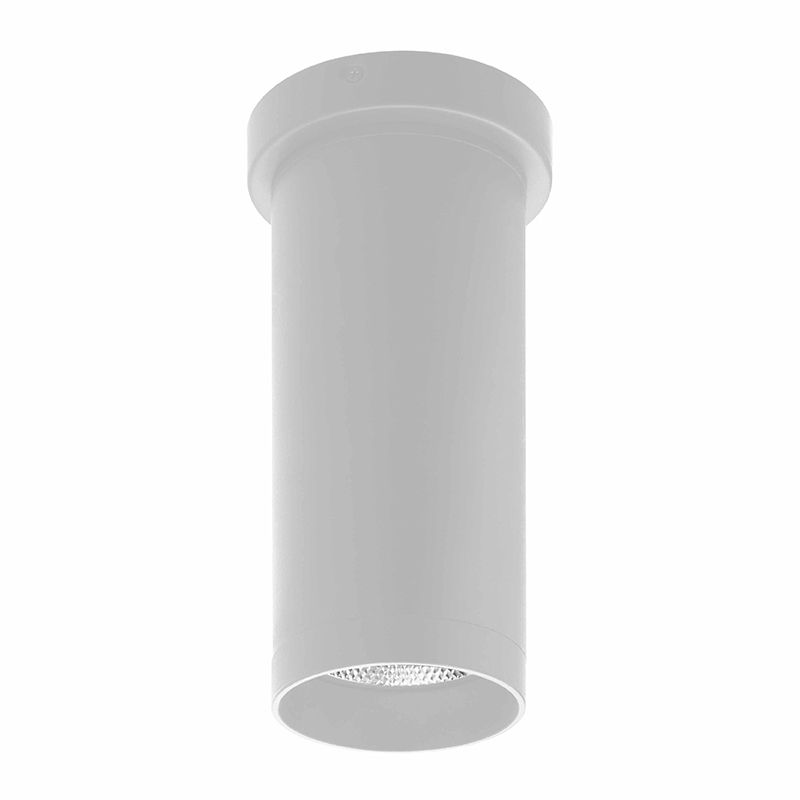

CMC4-MCTP-DD-WH
4" Round Architectural Ceiling & Suspended Cylinders, 9W/12W/15W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120-277V
- :: Power Factor: >0.90
- :: THD: <20%
- :: Wattage: 9W/ 12W/ 15W
- :: Efficacy: 75 LPW
- :: Aluminum Housing & Glass Lens
- :: Suspension Cable & Canopy Set Accessories Avail.
- :: Universal Swivel W/ Rod Kit Accessories Avail. Ambient Operating Temperature: -13ºF to 113ºF
- :: Rated life: 70,000 hrs
- :: IP Rating: IP40 suitable for damp locations
- :: Dimming: (Dual Function) Triac Dimmable at 120V & 0-10V Dimming at 120-277V
- :: Total Lumens: 1125LM Max.
- :: Color Temperatures: 3000K/ 4000K/ 5000K
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 40°
Applications
- :: 4" Cylinder, Pendant & Ceiling Cylinder Light, Aluminum Cylinder, White Aluminum Housing, Polycarbonate (PC) Lens
Features
ACCESSORIES
| Product Name | Lumens | Color Temp | Watts | Description | |||
|---|---|---|---|---|---|---|---|
| Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, White | |||||||
| Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, Black | |||||||
| Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, White | |||||||
| Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, Black | |||||||
 CMC4-TRM-AG  SPEC | 4-inch ceiling mount cylinder trim, Anodized Gold (AG) | ||||||
 CMC4-TRM-BN SPEC | 4-inch ceiling mount cylinder trim, Anodized Gold (AG) | ||||||
 CMC4-HCDK-BK SPEC | 4-inch ceiling mount cylinder honeycomb diffuser kit, Black | ||||||
 CMC4-HCDK-AG SPEC | 4-inch ceiling mount cylinder honeycomb diffuser kit, Anodized Gold (AG) | ||||||
 CMC-CS-8FT-BK SPEC | Suspension Cable & Canopy Set For CMC Series, 8FT, 5-wire, Black | ||||||
 CMC-CS-8FT-WH SPEC | Suspension Cable & Canopy Set for CMC Series, 8FT, 5-Wire, White | ||||||
 CMC46-ULK SPEC | 400LM | 3000K/4000K/5000K | 5W | Up Light Kit | |||
 CMC-JBCK-BK SPEC | Cylinder And Pendant Lighting J-Box Cover Canopy | ||||||
 CMC-JBCK-WH SPEC | Cylinder And Pendant Lighting J-Box Cover Canopy | ||||||
 CMC4-FS14-WG-KIT SPEC | CMC4 14in Flat Shade, White/Gold | ||||||
 CMC4-FS14-BG-KIT SPEC | CMC4 14in Flat Shade, Black/Gold | ||||||
 CMC4-FS14-WS-KIT SPEC | CMC4 14in Flat Shade, White/Silver | ||||||
 CMC4-FS14-BS-KIT SPEC | CMC4 14in Flat Shade, Black/Silver | ||||||
 CMC4-DS14-WS-KIT SPEC | CMC4 14in Dome Shade, White/Silver | ||||||
 CMC4-DS14-BS-KIT SPEC | CMC4 14in Dome Shade, Black/Silver | ||||||
 CMC4-PCR-KIT SPEC | 12in Dia. Prismatic Pc Highbay Reflector Kit For CMC4 | ||||||
 CMC4-WPCK-WH SPEC | CMC4 Weatherproof Conversion Kit for Cord or Down-Rod, White | ||||||
 CMC4-WPCK-BK SPEC | CMC4 Weatherproof Conversion Kit for Cord or Down-Rod, Black |
