CMC4S-MCTP-DD-WH

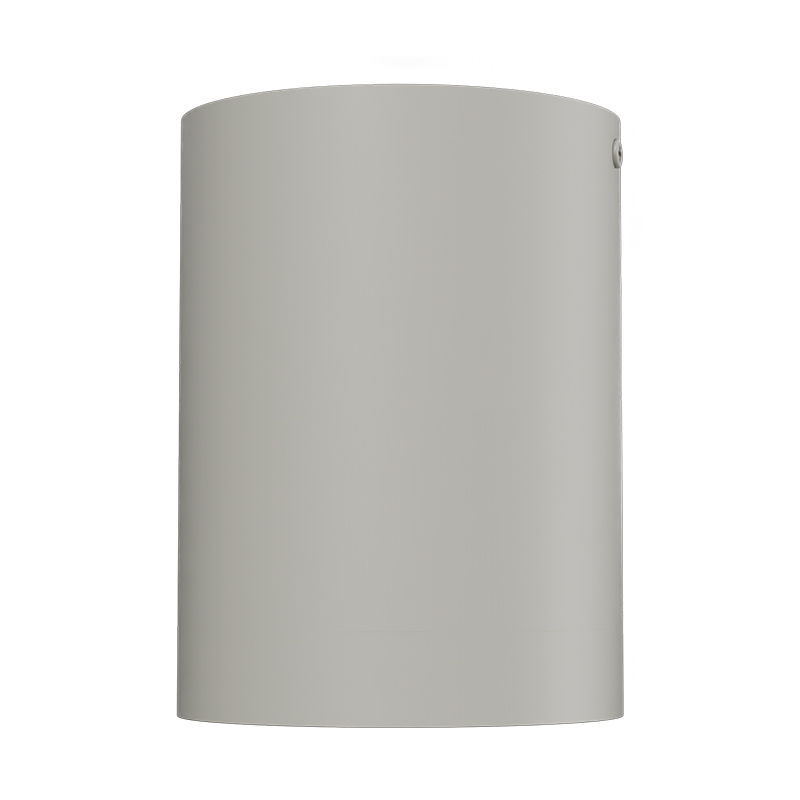

4" Round Architectural Ceiling & Suspended Cylinders, 9W/12W/15W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120-277V
- :: Power Factor: >0.90
- :: Wattage: 9W/12W/15W
- :: Efficacy: 76 LPW
- :: THD: <20%

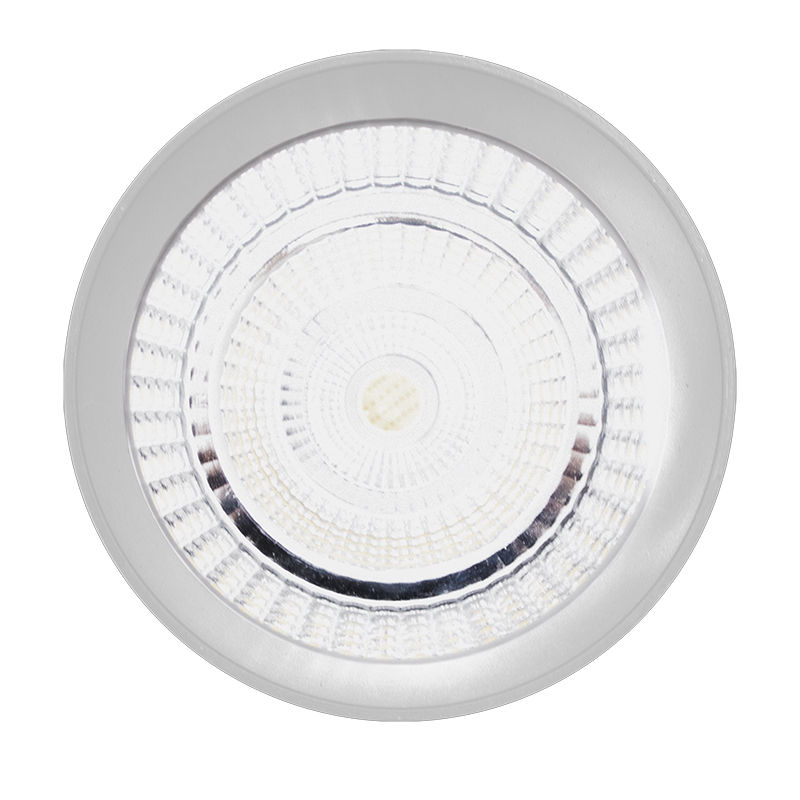

- :: Aluminum Housing & Glass Lens
- :: Suspension Cable & Canopy Set Accessories Avail.
- :: Universal Swivel W/ Rod Kit Accessories Avail. Ambient Operating Temperature: -13ºF to 113ºF
- :: IP Rating: IP40 suitable for damp locations
- :: 7-Year Warranty

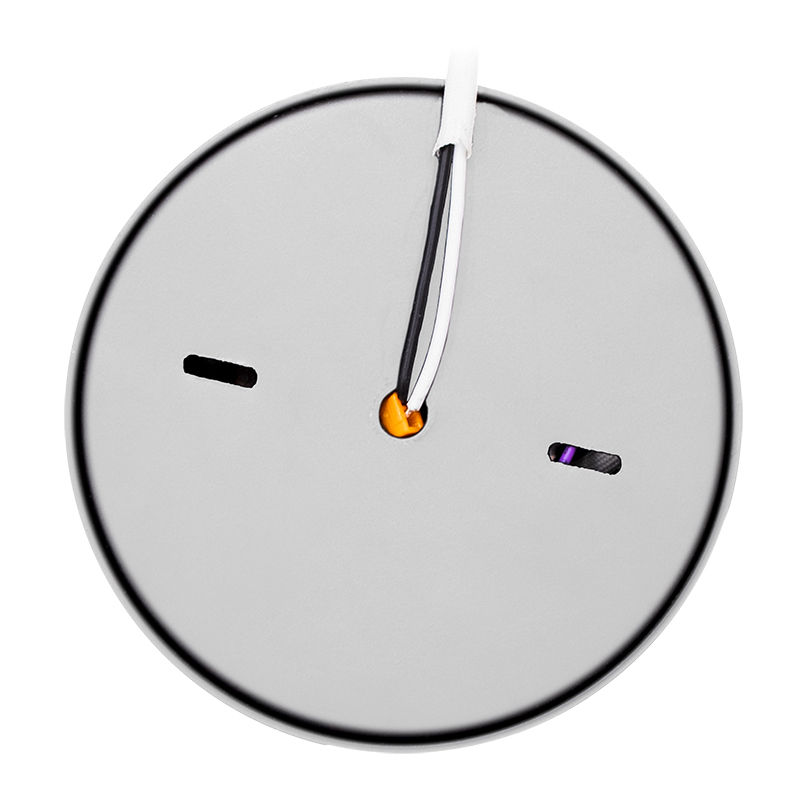

- :: Multi CCT: Selectable Multi-CCT & Power Switches on the back of the fixture(Dual Function)
- :: Dimming: (Dual Function) Triac Dimmable at 120V & 0-10V Dimming at 120-277V
- :: Total Lumens: 1140 LM Max.
- :: Color Temperatures: 3000K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 40°
- :: Rated life: 70,000 hrs
Applications
- :: 4" Cylinder, Pendant & Ceiling Cylinder Light, Aluminum Cylinder, White Aluminum Housing, Polycarbonate (PC) Lens
Features
ACCESSORIES
Product Name | Description | |||
---|---|---|---|---|
![]() CMC4-TRM-AG ![]() SPEC | 4-inch ceiling mount cylinder trim, Anodized Gold (AG) | |||
![]() CMC4-TRM-BN ![]() SPEC | 4-inch ceiling mount cylinder trim, Anodized Gold (AG) | |||
![]() CMC4-HCDK-BK ![]() SPEC | 4-inch ceiling mount cylinder honeycomb diffuser kit, Black | |||
![]() CMC4-HCDK-AG ![]() SPEC | 4-inch ceiling mount cylinder honeycomb diffuser kit, Anodized Gold (AG) | |||
![]() CMC-CS-8FT-BK ![]() SPEC | Suspension Cable & Canopy Set For CMC Series, 8FT, 5-wire, Black | |||
![]() CMC-CS-8FT-WH ![]() SPEC | Suspension Cable & Canopy Set for CMC Series, 8FT, 5-Wire, White |
