CMC6-MCTP-DD-BK

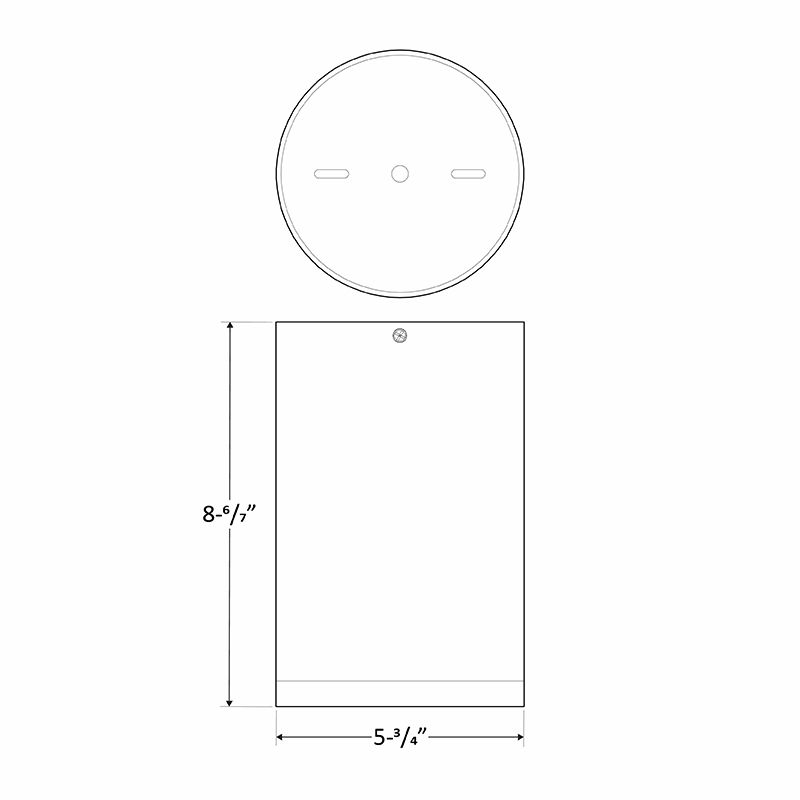

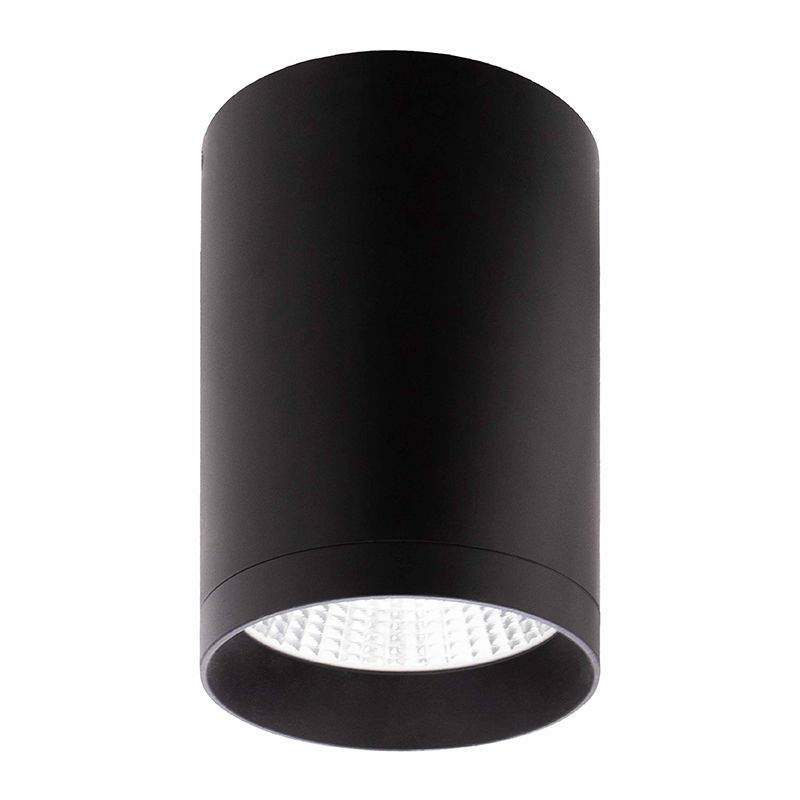

6" Round Architectural Ceiling & Suspended Cylinders, 21W/28W/35W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120-277V
- :: Power Factor: >0.90
- :: THD: <20%
- :: Wattage: 21W/28W/35W
- :: Efficacy: 75 LPW

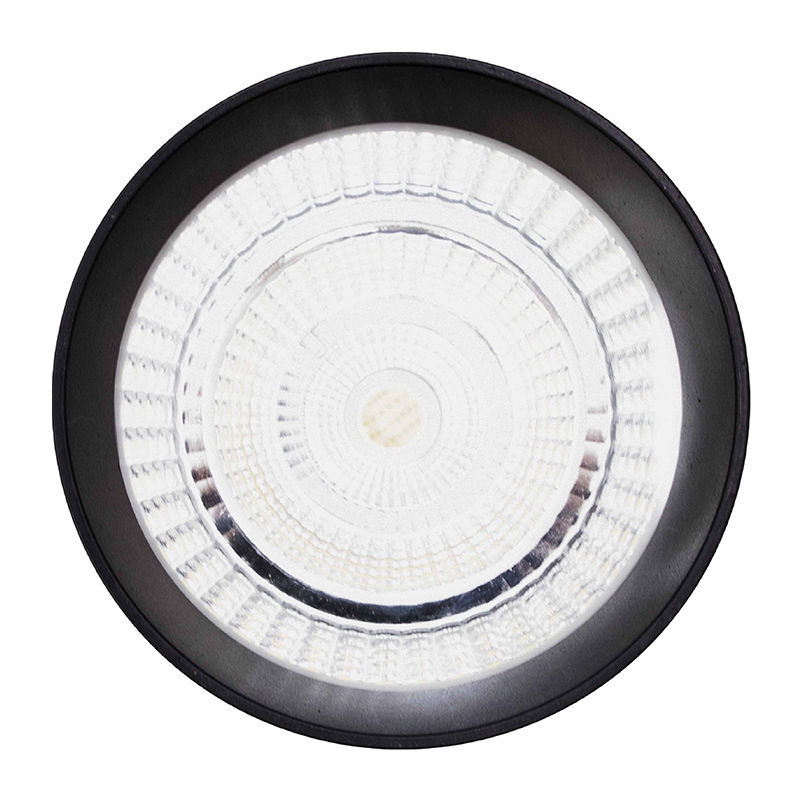

- :: Aluminum Housing & Glass Lens
- :: Suspension Cable & Canopy Set Accessories Avail.
- :: Universal Swivel W/ Rod Kit Accessories Avail. Ambient Operating Temperature: -13ºF to 113ºF
- :: Rated life: 70,000 hrs
- :: IP Rating: IP40 suitable for damp locations
- :: Dimming: (Dual Function) Triac Dimmable at 120V & 0-10V Dimming at 120-277V
- :: Total Lumens: 2624LM Max.
- :: Color Temperatures: 3000K/ 4000K/ 5000K
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 25°
Applications
- :: 6" Cylinder, Pendant & Ceiling Cylinder Light, Aluminum Cylinder, White Aluminum Housing, Polycarbonate (PC) Lens
Features
ACCESSORIES
Product Name | Lumens | Color Temp | Watts | Description | |||
---|---|---|---|---|---|---|---|
Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, White | |||||||
Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, Black | |||||||
Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, White | |||||||
Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, Black | |||||||
![]() CMC6-TRM-AG ![]() SPEC | 6-inch ceiling mount cylinder trim, Anodized Gold (AG) | ||||||
![]() CMC6-TRM-BN ![]() SPEC | 6-inch ceiling mount cylinder trim, Anodized Gold (AG) | ||||||
![]() CMC-CS-8FT-BK ![]() SPEC | Suspension Cable & Canopy Set For CMC Series, 8FT, 5-wire, Black | ||||||
![]() CMC-CS-8FT-WH ![]() SPEC | Suspension Cable & Canopy Set for CMC Series, 8FT, 5-Wire, White | ||||||
![]() CMC6-HCDK-AG ![]() SPEC | 6-inch cylinder honeycomb diffuser kit, Anodized Gold (AG) | ||||||
![]() CMC6-HCDK-BK ![]() SPEC | 6-inch ceiling mount cylinder honeycomb diffuser kit, Black | ||||||
![]() CMC46-ULK ![]() SPEC | 400LM | 3000K/4000K/5000K | 5W | Up Light Kit | |||
![]() CMC46-ULK ![]() SPEC | 400LM | 3000K/4000K/5000K | 5W | Up Light Kit | |||
![]() CMC-JBCK-BK ![]() SPEC | Cylinder And Pendant Lighting J-Box Cover Canopy | ||||||
![]() CMC-JBCK-WH ![]() SPEC | Cylinder And Pendant Lighting J-Box Cover Canopy | ||||||
![]() CMC6-WPCK-WH ![]() SPEC | CMC6 Weatherproof Conversion Kit For Cord Or Down-Rod, White | ||||||
![]() CMC6-WPCK-BK ![]() SPEC | WMC 4in 32mm Acrylic Drop Lens |
