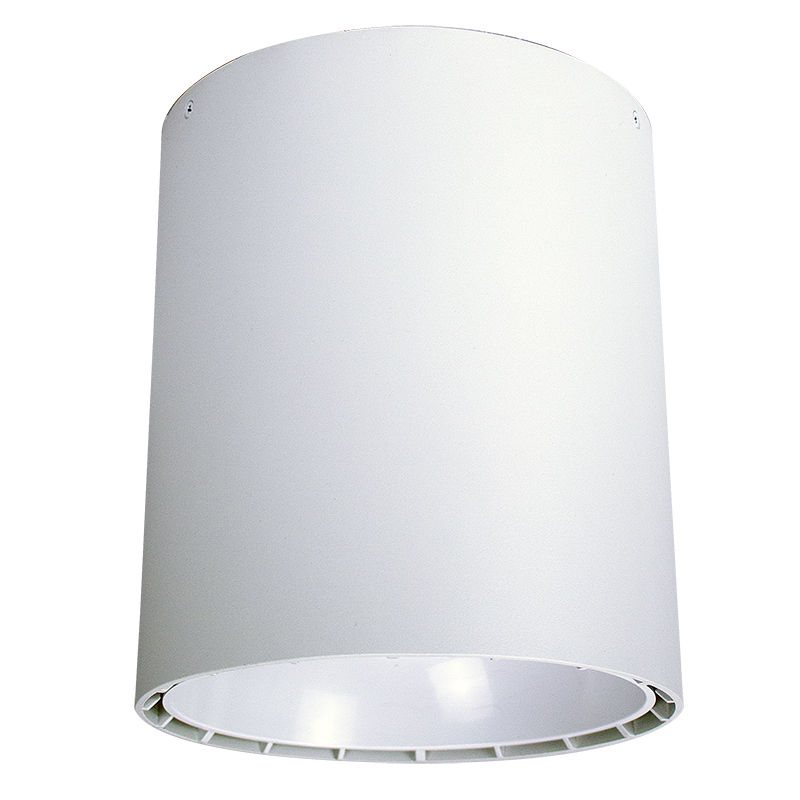

CMC9-MCTP-D-WH

9" Round Architectural Ceiling & Suspended Cylinders, 60W/70W/80W, 3000K/4000K/5000K

Technical Specs

  • :: Voltage: 120-277V
  • :: Power Factor: >0.90
  • :: THD: <20%
  • :: Wattage: 60W/70W/80W
  • :: Efficacy: 80 LP
  • :: Aluminum Housing & Glass Lens
  • :: Frosted Glass Lens Accessory Available
  • :: EM Backup Option with the Extension Cylinder
  • :: Swivel Rod Kit for Suspended Mounting Available
  • :: Black or White Trim Accessories Available
  • :: Ambient Operating Temperature: -13ºF to 113ºF
  • :: IP Rating: IP40 suitable for damp locations
  • :: 5-Year Warranty
  • :: Multi CCT: Selectable Multi-CCT & Power Switches on the back of the fixture
  • :: Dimming: 0-10V Dimming
  • :: Total Lumens: 6400LM Max.
  • :: Color Temperatures: 3000K/4000K/5000K
  • :: Color Rendering Index: CRI ≥ 80
  • :: Beam Angle: 60°
  • :: Rated life: 50,000 hrs
  • :: 5-Year Warranty

Applications

  • :: 9" Cylinder, Pendant & Ceiling Cylinder Light, Aluminum Cylinder, White Aluminum Housing, Polycarbonate (PC) Lens

Features

  • ETL Listed
  • Dimming 0-10V
  • MCTP
  • 5 year warranty

ACCESSORIES

Product NameDescription
Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, White
Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, Black
Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, White
Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, Black
Decorative Extension Cylinder Black
Decorative Extension Cylinder White
Architectural Ceiling & Suspended Cylinder Reflector
Architectural Ceiling & Suspended Cylinder Reflector
