SPEC SHEET

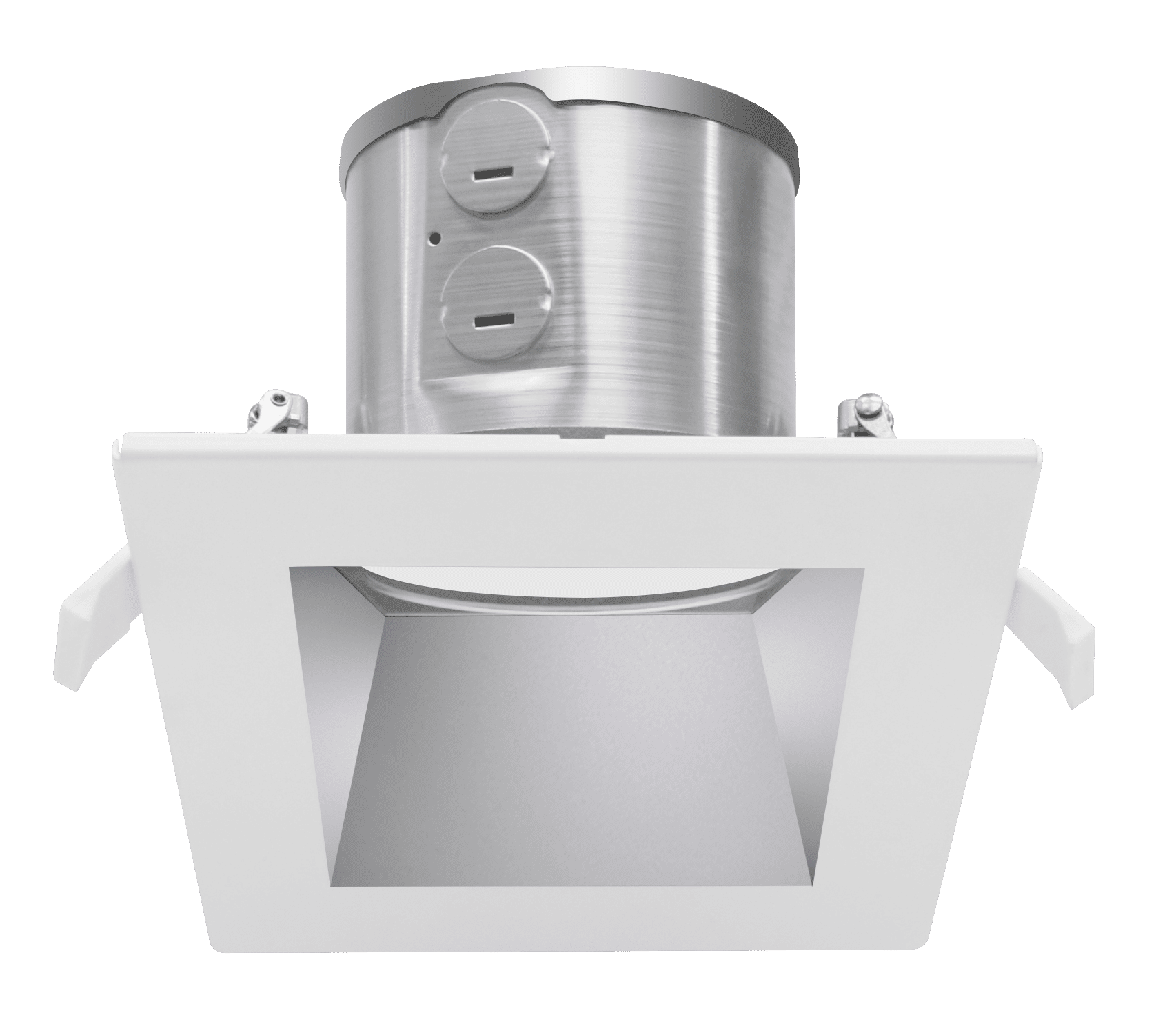

CRLC4-40W-MCTP-SA-D

4” LED Commercial Recessed Light

Technical Specs

  • :: Voltage: 120-277V AC 50/60Hz
  • :: Wattage: 27W/34W/40W
  • :: Power factor: >0.90
  • :: Efficacy: 80 LPW
  • :: 4” Haze & White Finish TRIM
  • :: Mounting Options: Recessed
  • :: Temperature Rating: Designed to operate in temperatures 113°F
  • :: No IC-Rated
  • :: Suitable for Damp Locations
  • :: 5-Year Warranty
  • :: MCTP: The switch is on the light engine
  • :: Dimming: 0~10V Dimmable
  • :: Total lumens: 3200LM Max.
  • :: Color temperature: 3000K/3500K/4000K
  • :: Color rendering index: >80
  • :: Lifespan: 50,000 hrs.

Applications

  • :: Ideal for hotel, offices, retail outlets, restaurant, parking garages, conference room, education facilities and more.

Features

  • Energy Star
  • UL Listed
  • DAMP
  • 5 year warranty
  • MCTP
  • Dimming 0-10V

ACCESSORIES

Product NameDescription
Snap-In Comm. Recessed Light Universal Rough-In Plate

OPTIONS
