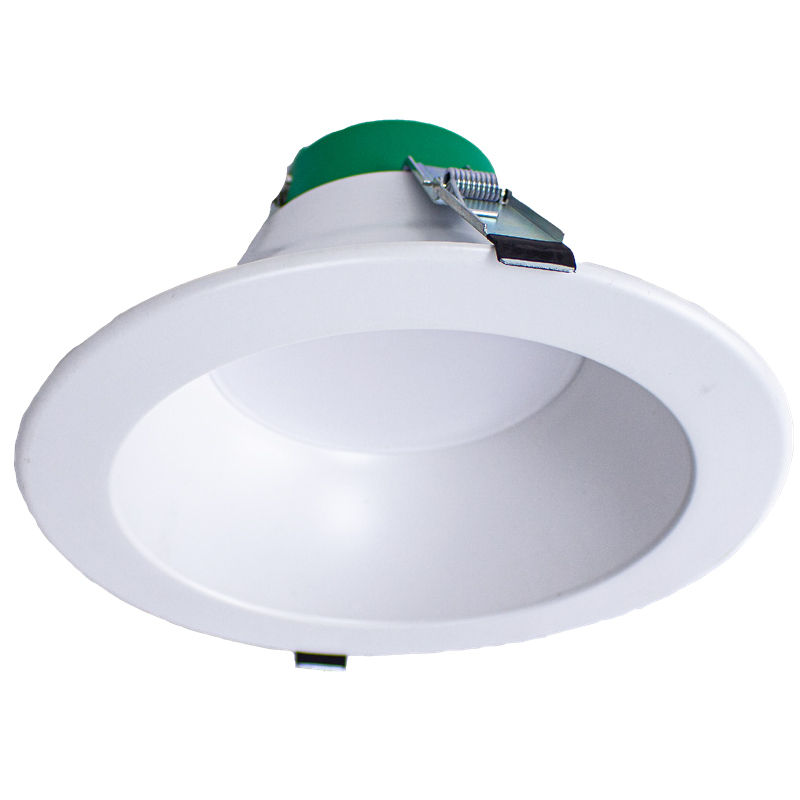

CRLE10-HO-26-40W-MCTP-WH

Power and CCT Adjustable Commercial Recess Light, 26W/32W/40W, 3000K/4000K/5000K

Technical Specs

  • :: Voltage: 120-277V AC
  • :: Output Voltage: 36VDC
  • :: Power Factor: >0.90
  • :: Wattage: 26W/32W/40W
  • :: Efficacy: 100 LPW
  • :: Total Harmonic Distortion: ≤15 %
  • :: 2FT Flex Whip With Push-in Connector
  • :: 16” Earthquake Safety Cable Incl.
  • :: Mounting Options: Recessed
  • :: Temperature Rating: Designed To Operate in Temperatures 113°F
  • :: No IC-Rated
  • :: Suitable For Damp Locations
  • :: 5-Year Warranty
  • :: MCTP: The Switch Is On The Light Engine
  • :: Dimming: 0~10V Dimmable
  • :: Total Lumens: 4000LM Max.
  • :: Color Temperature: 3000K/4000K/5000K
  • :: Color Rendering index: >80
  • :: Beam Angle: 100°-110°
  • :: Rated Life: 50,000 hrs

Applications

  • :: LED recessed trims have been designed to be a flexible lighting solution for new construction applications, ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications

Features

  • ETL Listed
  • Dimming 0-10V
  • Energy Star
  • 5 year warranty
  • MCTP

ACCESSORIES

Product NameDescription
image description
Snap-In Comm. Recessed Light Universal TBAR Plate
image description
10" Snap-In Comm. Recessed Light 10In Black Trim + Ring Set
image description
10" Snap-In Comm. Recessed Light 10In Brushed Nickel Trim + Ring Set
