SPEC SHEET

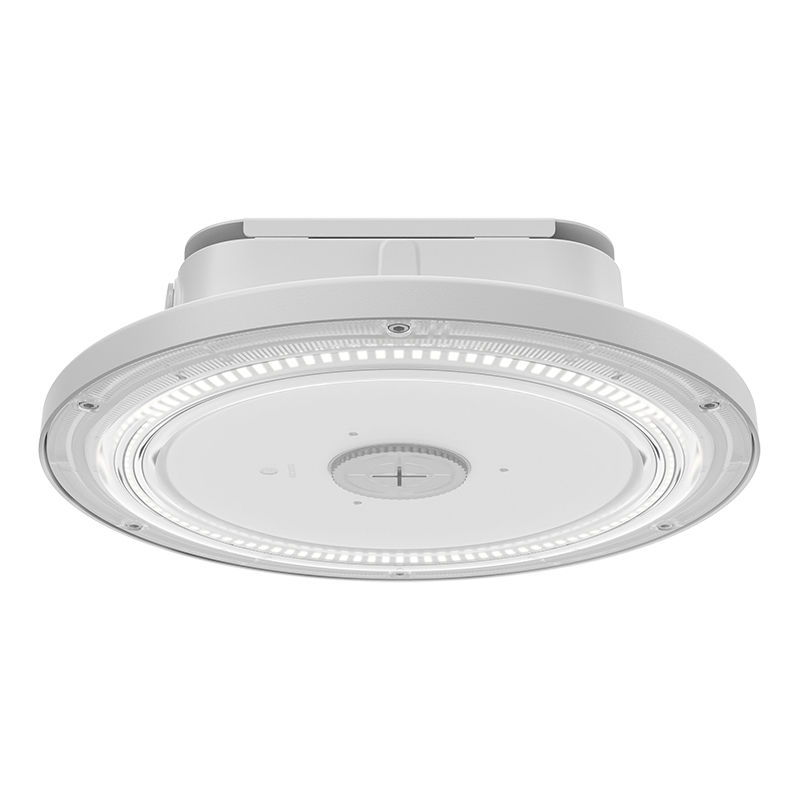

CXU-18-60W-MCTP-SR
Garage Light with Uplight, Sensor Ready, 18W/30W/45W/60W, 3000K/4000K/ 5000K
Technical Specs
- :: Input Wattage: 18W/30W/45W/60W
- :: Input Current: 0.6A MAX
- :: Input Voltage: 120-277VAC 50/60Hz
- :: Power Factor: >0.90
- :: LPW: 165
- :: Die-cast Aluminum
- :: 3/4” Threaded Hub Located On Top For Stem Mounting
- :: Integrated Uplight, UP: 10% DOWN: 90%
- :: Twist-Lock Zhaga Socket Pre-Installed. See Motion Sensor Accessories
- :: Prismatic Polycarbonate Lens
- :: Operating Temperature: -40°F ~ 131°F
- :: IP Rating: IP65, Wet Locations
- :: 7-Year Warranty
- :: Dimming: 0~10V Dimmable
- :: Total Lumens: 9900LM Max.
- :: Color Temperature: 3000K/4000K/ 5000K
- :: Color Rendering Index: >80
- :: Beam Angle: 150°
- :: Lifespan: 70000 Hrs
Applications
- :: Indoor Parking
- :: Commercial Buildings
- :: School
- :: Warehouses
- :: Complexes
- :: Apartment
- :: Garage
