DELW-15W-MCT-BK
120-277V Builder Series Decorative Outdoor LED AC/Emergency Unit, 15W, 3500K/4000K/5000K
Technical Specs
- :: Voltage: 120-277V AC 50/ 60Hz
- :: Wattage: 15W
- :: Power Factor: >0.90
- :: Total Harmonic Distortion: ≤20 %
- :: Efficacy: 130/137/130LPW
- :: Includes Pre-wired Photo Electric Control (Dusk to Dawn)

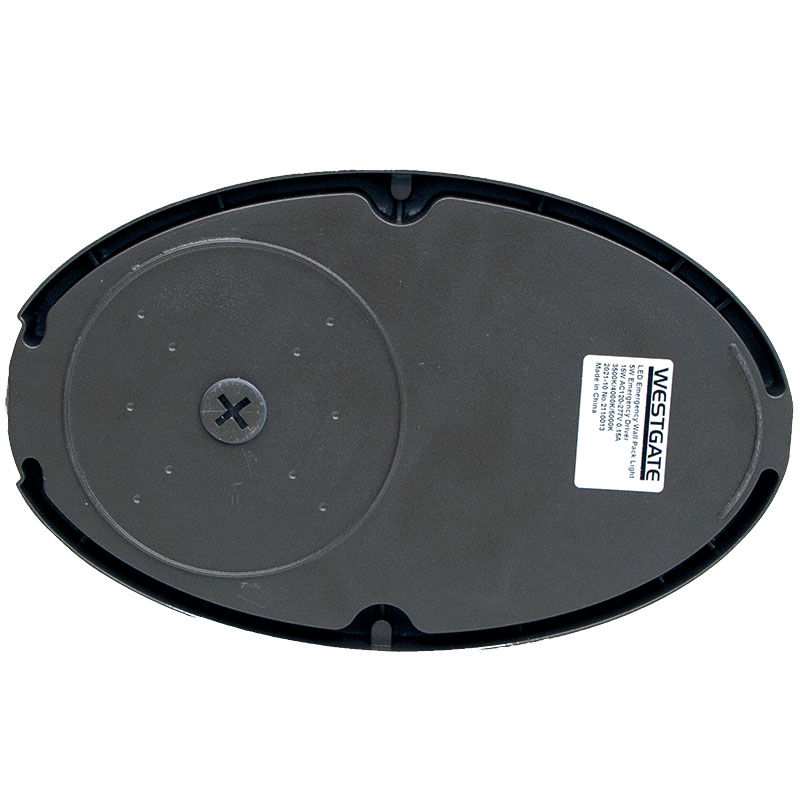

- :: Back plate: Die-cast aluminum
- :: Polycarbonate Housing & Lens
- :: Operating Temperature: 31°F to 113°F
- :: 7-Year Warranty
- :: IP65, Suitable for Wet Location
- :: Output Power: 4W
- :: Output Current: 100mA
- :: Output Voltage: 52VDC Max.
- :: Li-ion 3.7V/2500mAh
- :: IP67 Stainless Steel Test Button with Integrated Indicator
- :: Minimum 90 Minutes Emergency Operation
- :: Multi-CCT (The switch is inside the fixture)
- :: Dimming: 0-10V Dimming
- :: LED Type/Brand: 2835LUMILEDS
- :: Front: Polycarbonate Lens and Housing
- :: Total Lumens: 1950LM/2025LM/1950LM
- :: Color Temperatures: 3500K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 100°
- :: Rated life: 70,000 Hrs
Applications
- :: Entrance lighting, courtyard lighting
- :: Industrial lighting, outdoor landscape lighting
- :: Building, the hotel
- :: Wall lighting area and so on
