DLS8-MCT-PIR

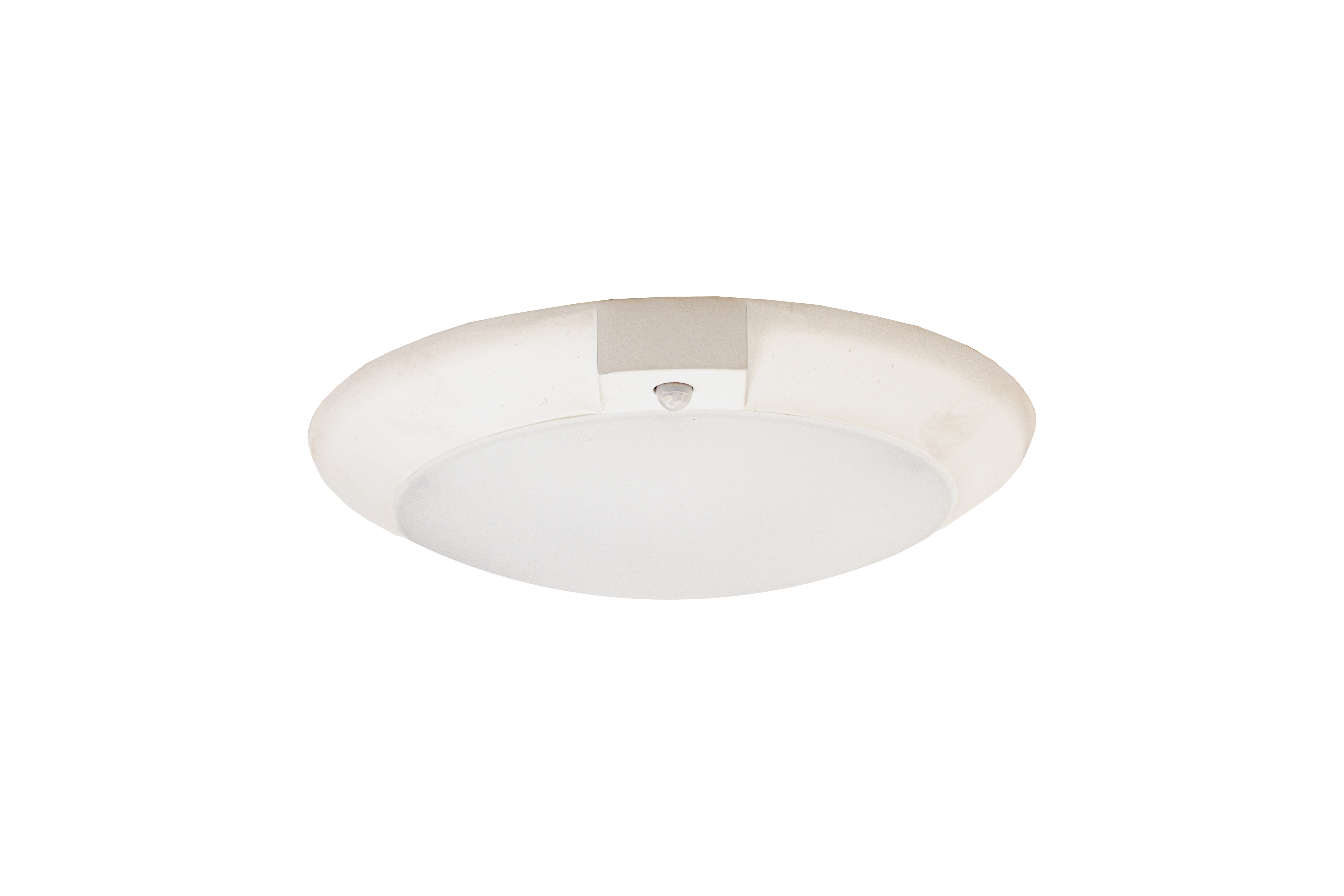

LED Round Disk Light with Occupancy Sensor

Technical Specs

  • :: Construction: Spun aluminum
  • :: LED: Unique enclosed DOB (Driver On Board) LED boardenclosed in clear plastic casing for better damp location performance
  • :: Gasket: close cell Neoprene foam gasket
  • :: Lens: White translucent acrylic
  • :: Isolated driver for improved thermal management
  • :: CRI: 90
  • :: Working Voltage: 120V AC
  • :: Dimmable
  • :: LED: Seoul DOB (Driver On Board) Technology
  • :: Power factor: 90% +
  • :: Suitable for damp locations
  • :: Maximum Ambient Temperature: 104°F
  • :: Energy Star-rated
  • :: Fit on recessed housings / Fit on standard 4" octagonal (40) or 3" octagonal (30) electrical boxes

Applications

  • :: Disk lights have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets,storage areas, attics, corridors, or general lighting solutions for residential and commercial applications.

Features

  • ETL Listed
  • Wet Location
  • 5 year warranty
  • Energy Star
  • Dimmable
