SPEC SHEET

DLSN6-27K

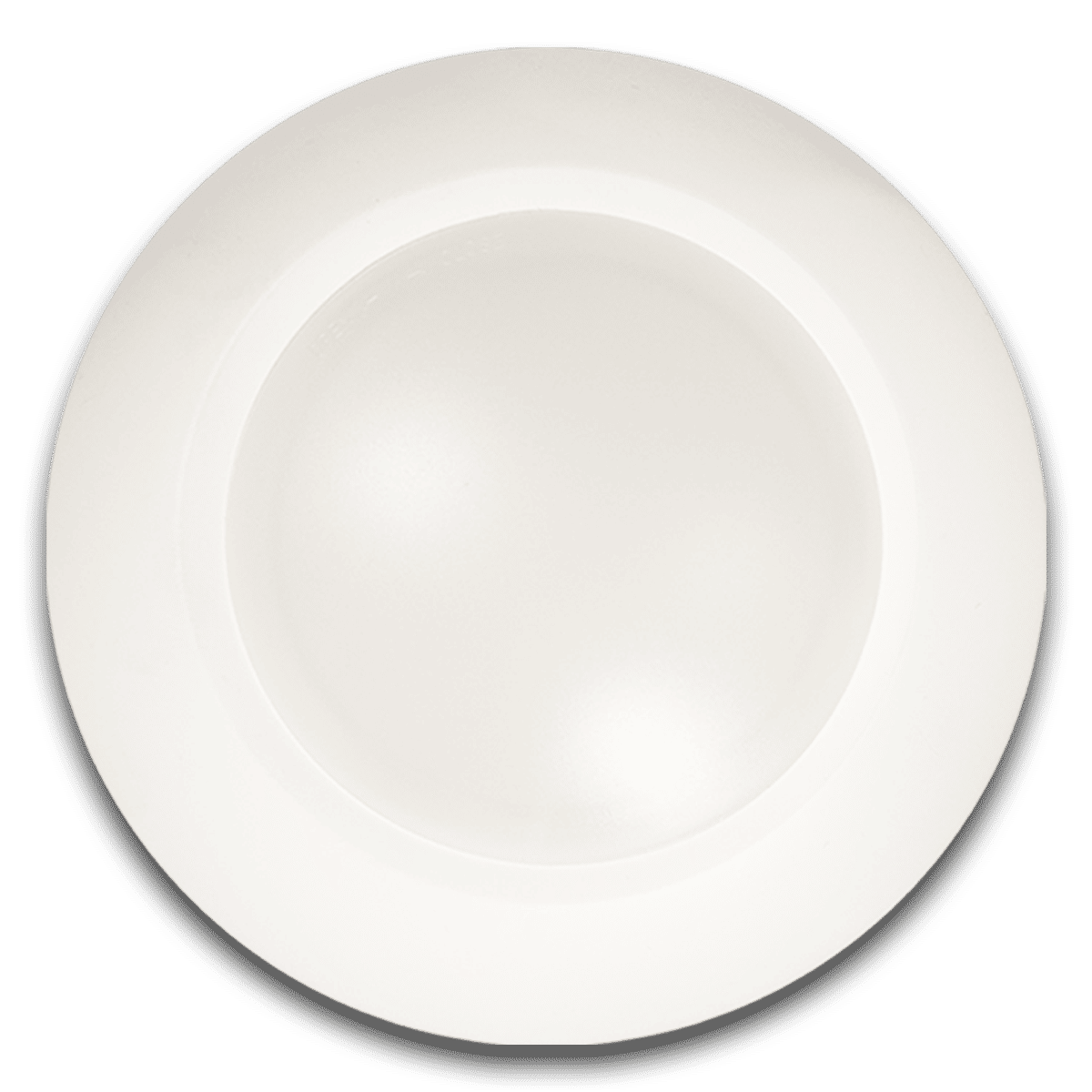

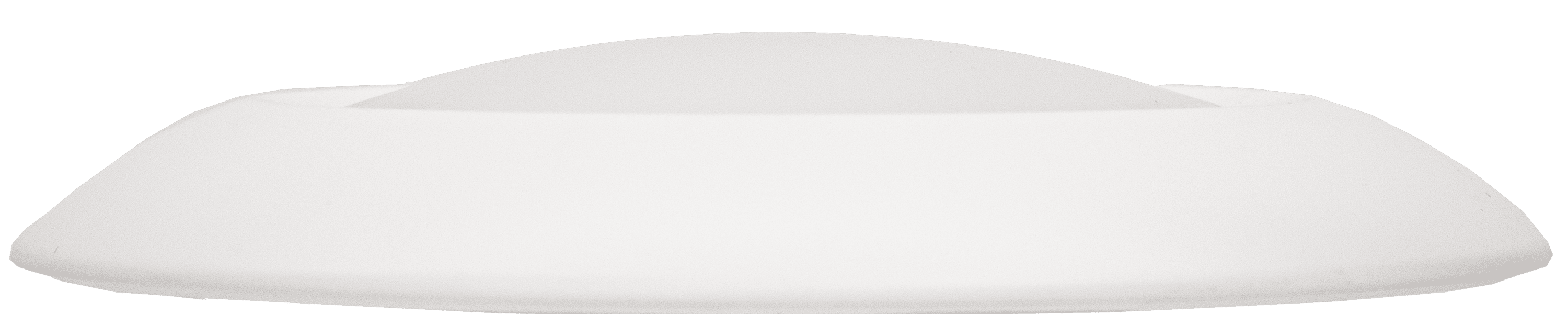

LED J-Box Mounting Disc Lights

Technical Specs

  • :: Voltage: 120V AC
  • :: Power Factor: >0.90
  • :: Wattage: 15W
  • :: Efficacy: 63-66 LPW
  • :: White Finish
  • :: Spun Steel, Powder-Coated
  • :: Fits on 4” Octagonal (4O) or 3” Octagonal (3O) Electrical
  • :: Boxes (Adaptor Plate included)
  • :: Maximum Ambient Temperature: 104°F
  • :: Closed Cell Neoprene Foam Gasket
  • :: Suitable for Damp Location with gasket
  • :: Surface Mounting Bracket Included
  • :: Rated life: 50,000 hrs
  • :: Lens: White Translucent Acrylic
  • :: LED: Unique DOB (Driver On Board) LED Board Enclosed in Clear PC Cover for Better Damp Location Performance
  • :: Dimming: TRIAC Dimming (Using Standard TRIAC
  • :: LED Dimmers)
  • :: Total Lumens: 950-1000LM
  • :: Color Temperatures: 2700K/3000K/4100K/5000K
  • :: Color Rendering Index: CRI ≥ 80
  • :: 5-Year Warranty

Applications

  • :: Disk lights have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications

Features

  • Wet Location
  • Dimmable
  • Energy Star
  • Title 24
  • ETL Listed
