SPEC SHEET
DLSN6-30K-BR

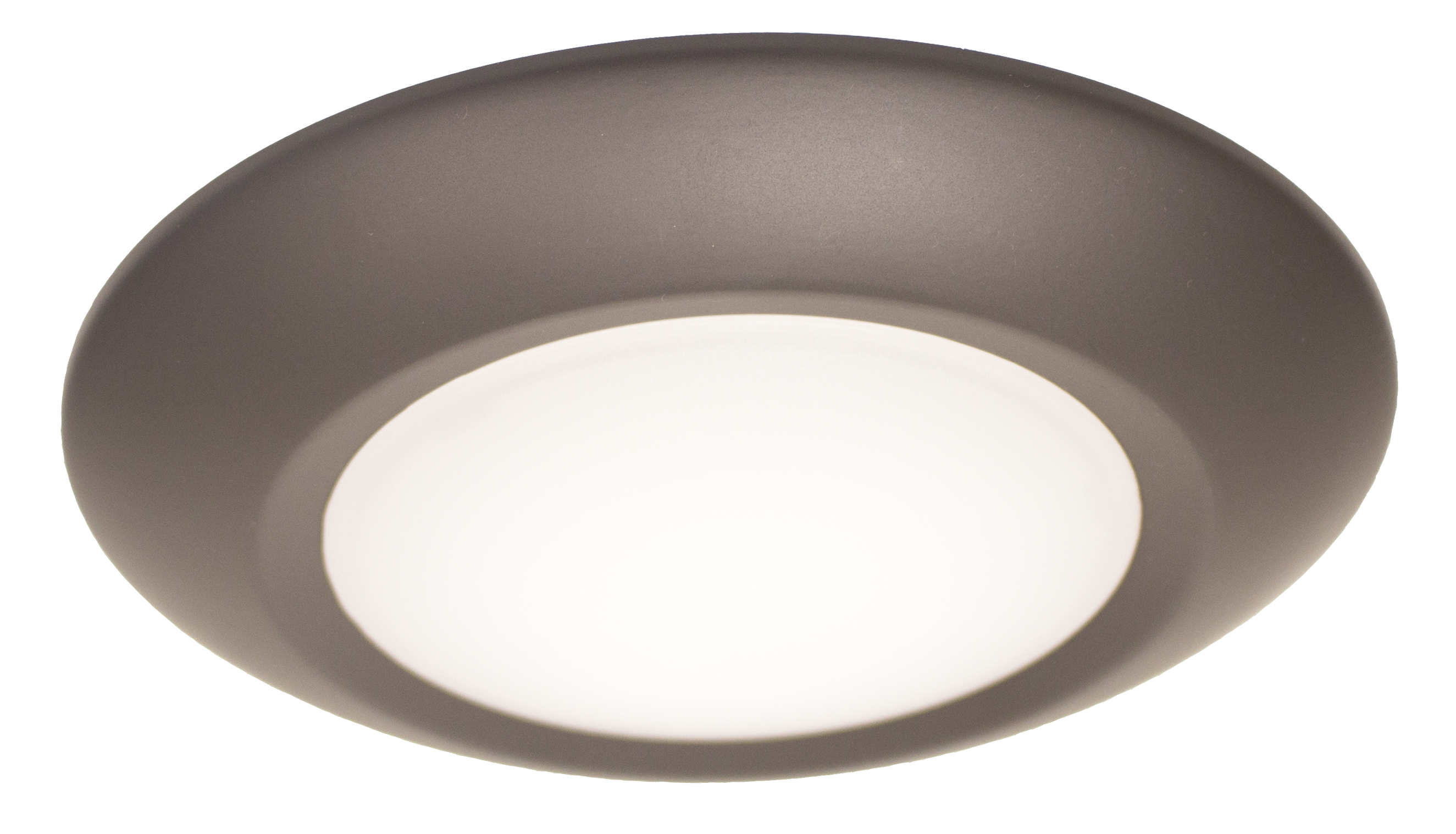

LED J-Box Mounting Disc Lights
Technical Specs
- :: Voltage: 120V AC
- :: Power Factor: >0.90
- :: Wattage: 15W
- :: Efficacy: 63-66 LPW
- :: White Finish
- :: Spun Steel, Powder-Coated
- :: Fits on 4” Octagonal (4O) or 3” Octagonal (3O) Electrical
- :: Boxes (Adaptor Plate included)
- :: Maximum Ambient Temperature: 104°F
- :: Closed Cell Neoprene Foam Gasket
- :: Suitable for Damp Location with gasket
- :: Surface Mounting Bracket Included
- :: Rated life: 50,000 hrs
- :: Lens: White Translucent Acrylic
- :: LED: Unique DOB (Driver On Board) LED Board Enclosed in Clear PC Cover for Better Damp Location Performance
- :: Dimming: TRIAC Dimming (Using Standard TRIAC
- :: LED Dimmers)
- :: Total Lumens: 950-1000LM
- :: Color Temperatures: 2700K/3000K/4100K/5000K
- :: Color Rendering Index: CRI ≥ 80
- :: 5-Year Warranty
Applications
- :: Disk lights have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications
