EL-1D

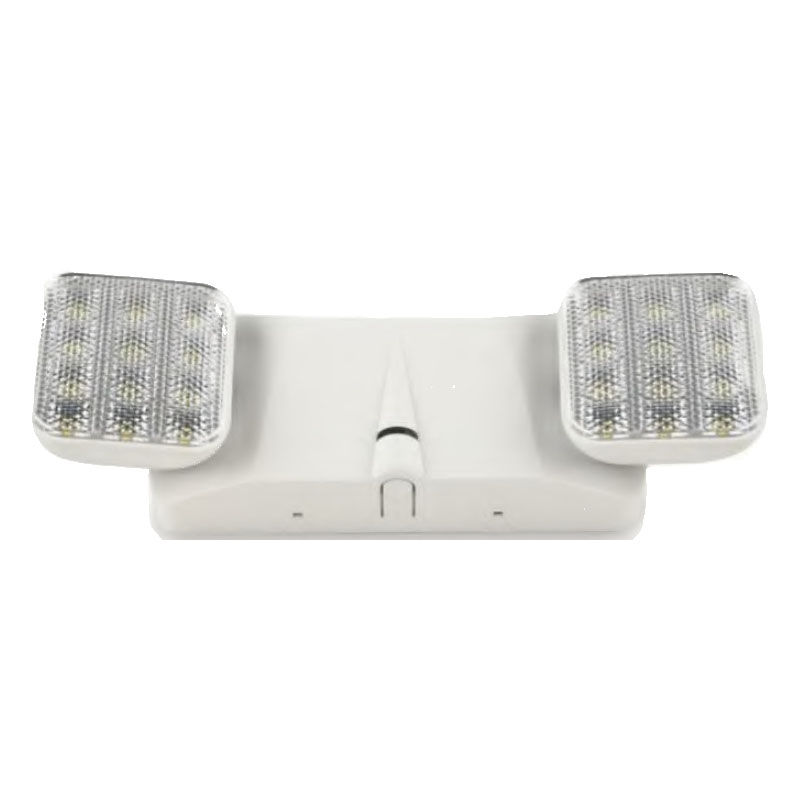

2-Head Designer Emergency Light, 2.4W, 6000K±500K
Technical Specs
- :: Voltage: 120V-277V AC Dual Voltage Operation
- :: Power Factor: >0.90
- :: Wattage: 2.4W Each Head
- :: Efficacy: 53 LPW
- :: Mounting: Wall Mounting with KO's in Back Plate
- :: Universal J-Box Mounting Pattern
- :: Maximum 24 Hours for Full Recharge Time
- :: Test Switch and Charge Indicator
- :: Operating Temperature: 32°F to 104°F
- :: Rated Life: 90-Minute Rated
- :: White Finish
- :: 2x12pcs Ultra Bright 2835 SMT LED Lamp Heads for Emergency Mode
- :: Improved Beam Control for Increased Spacing and Illumination
- :: Total Lumens: 240LM
- :: Color Temperatures: 6000K±500K
- :: Built-in 3.6V 1000mAh Nickel Cadmium Battery for Minimum 90 Minutes Emergency Operation
Applications
- :: Emergency lighting is designed to provide sufficient illumination in the event of a mains power failure. Modern emergency lighting is installed in virtually every commercial and high occupancy residential building. Most building codes require that they be installed in older buildings as well.
