ELN4X-6-15W-W

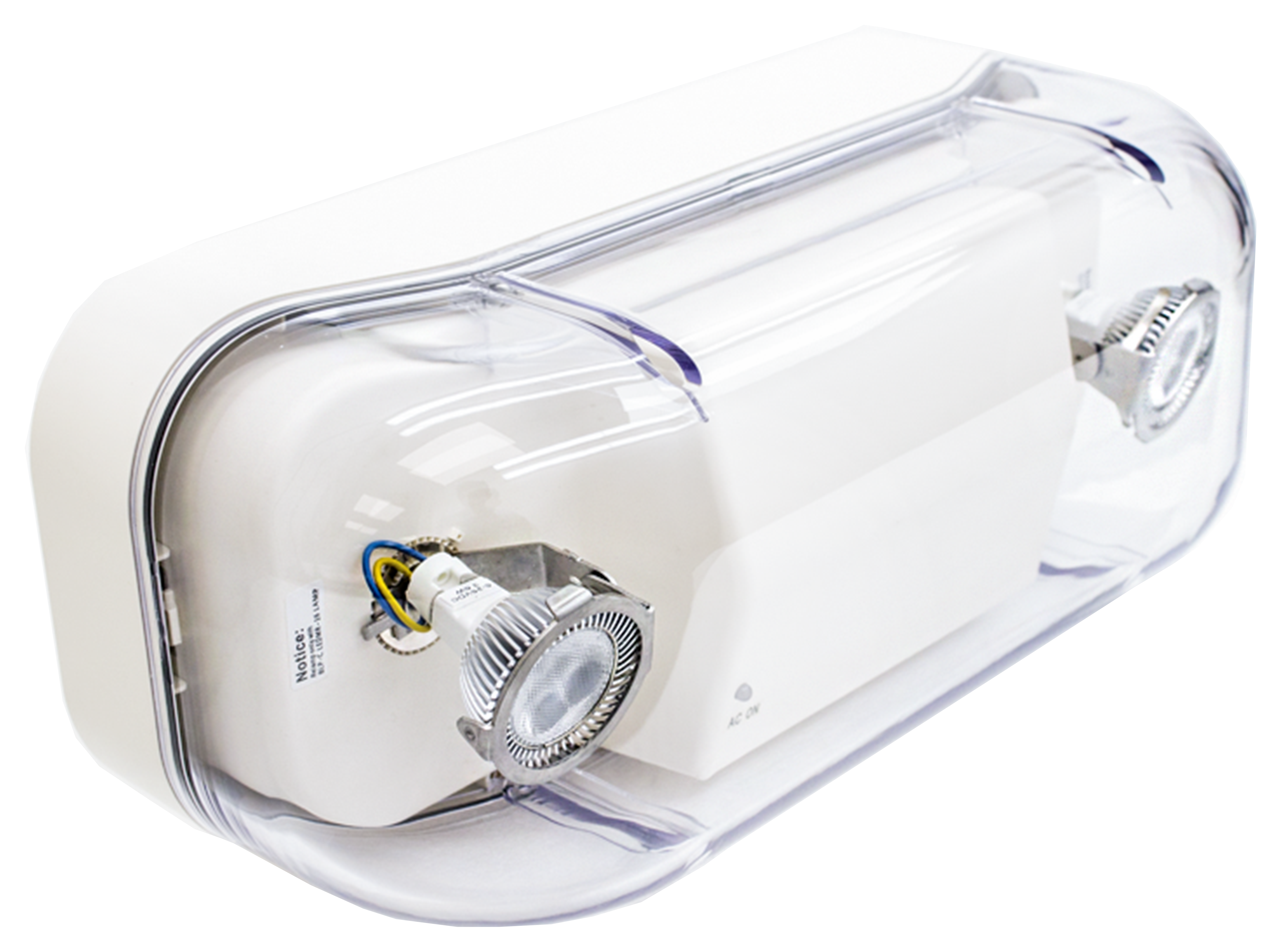

NEMA 4X Rated LED Emergency Lights

Technical Specs

  • :: High impact thermo-plastic emergency light
  • :: Two fully adjustable 3.3 watt, glare-fee LED lamp heads for safe egress
  • :: Dual voltage: 120/277
  • :: Operating temperature: 68-122°F
  • :: Top and back K.O.’s for conduit mounting (1/2”)
  • :: 6V/12V maintenance-free sealed Ni-Cad rechargeable battery for long life
  • :: 90-minute rated with push style test switch and red indicator light
  • :: Surf mount with top and side knockout for conduit
  • :: UL Listed for damp locations, UL924, NFPA 101 Life Safety Code
  • :: NEMA4X and NSF rated
  • :: 3-year warranty

Applications

  • ::An exit sign is a device in a public facility (such as a building, aircraft, or boat) denoting the location of the closest emergency exit in case of fire or other emergency. Most relevant codes (fire, building, health, or safety) require exit signs to be permanently lit.

Features

  • UL Listed
  • Wet Location
  • 3 year warranty
