SPEC SHEET

EXPR-30W-50K

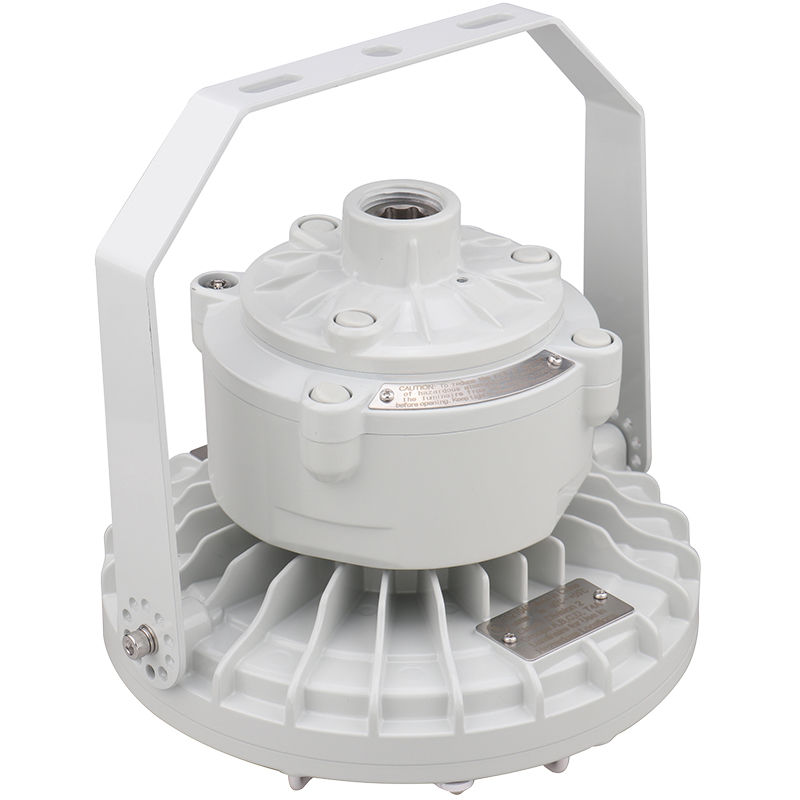

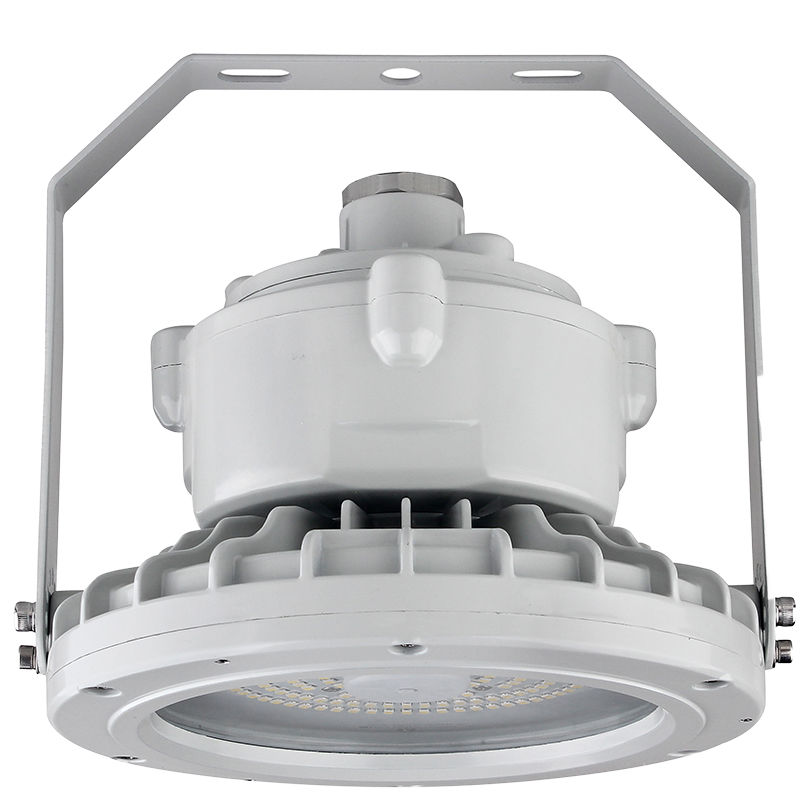

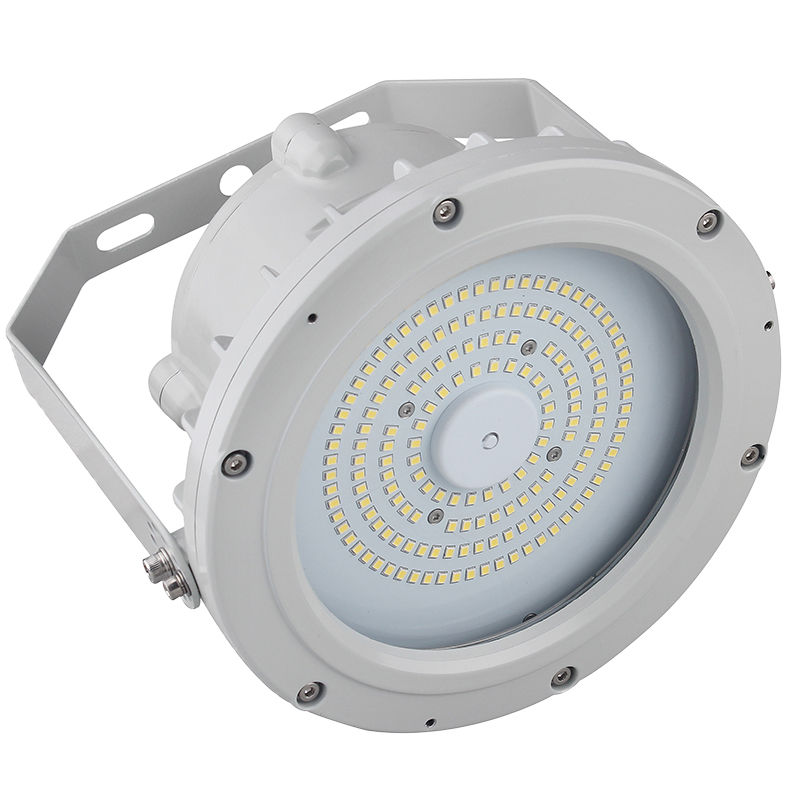

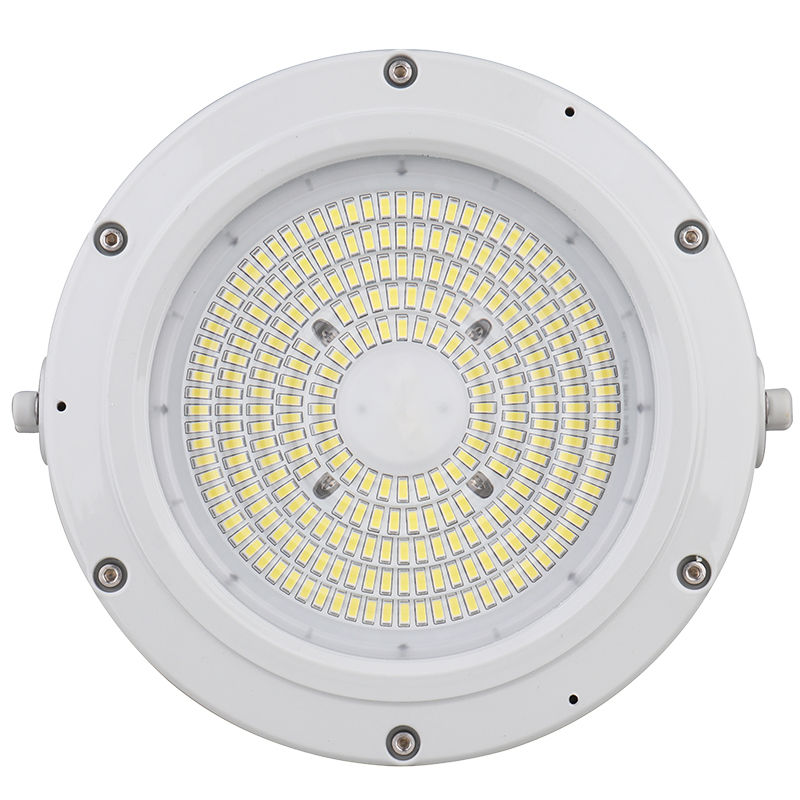

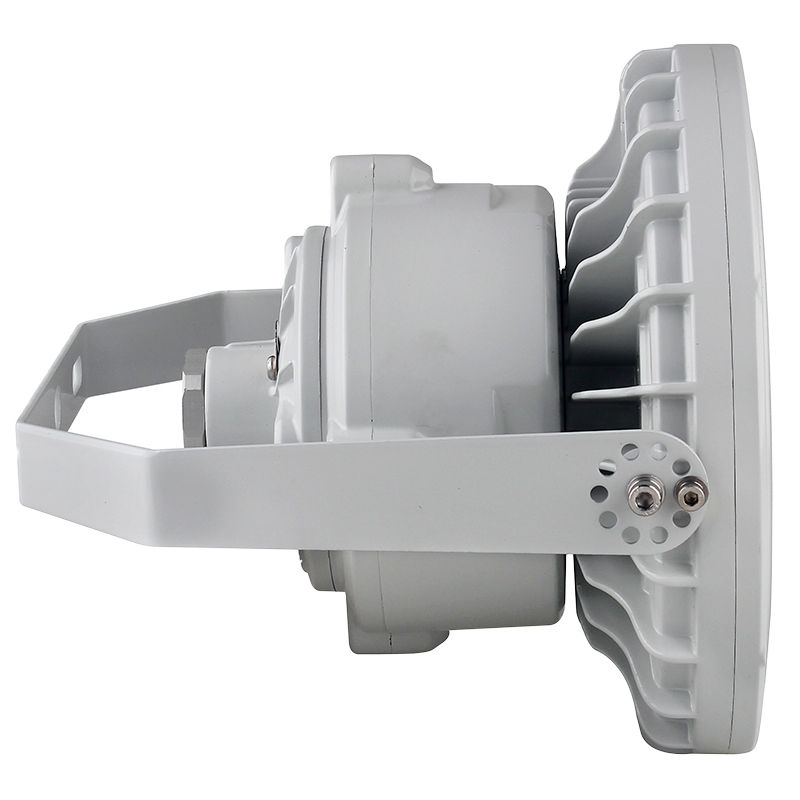

Round Hazardous Location Flood/Highbay Lights, 30W, 5000K

Technical Specs

  • :: Voltage: 120-277V AC 60Hz
  • :: Wattage: 30W
  • :: Power Factor: >0.90
  • :: THD: ≤20%
  • :: Efficacy: 146LPW
  • :: Aluminum Alloy Housing
  • :: Gray Finish
  • :: 3/4” Threaded KO On Top
  • :: Operating Temperature: -40°F to 176°F
  • :: IP Rating: IP66, Suitable for Wet Locations
  • :: 7-year Warranty
  • :: Lens: Clear Glass
  • :: LED: Samsung / SMD 2835(0.5W)
  • :: Total lumens: 4380LM
  • :: Color Temperatures: 5000K
  • :: Color Rendering Index: CRI ≥ 84
  • :: Rated Life: 70,000 Hrs
  • :: Beam Angle: 100°

Applications

  • :: Warehouse, Factory And Workshops;
  • :: Petroleum and Petrochemical Area, And Gas Stations
  • :: Power, Railway, Ship Port, Public Security, Fire Protection And Other Fields

Features

  • UL Listed
  • Wet Location
  • DLC Listed
  • 7 year warranty

ACCESSORIES

Product NameWattsDescription
image description
30W-60WFlat Wire Guard for EXPR 30W to 60W
image description
30W-60WDome Lens for EXPR 30W to 60W
image description
30W-60WU-shape Jelly-Jar Lens for EXPR 30W to 60W
image description
30W-60WU-Shape Jelly-Jar Wire Guard for EXPR 30W to 60W
