FDL-14-MCT5-BK

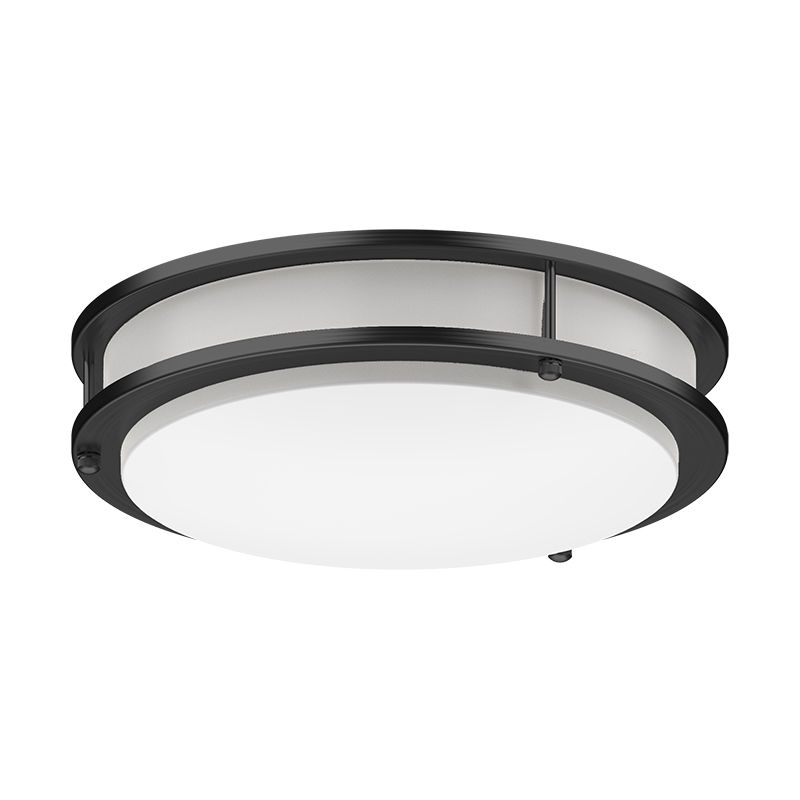

LED 5cct Double Ring Flush Mount, 20W, 2700K/3000K/3500K/4000K/5000K
Technical Specs
- :: Voltage: 120V AC
- :: Wattage: 20W
- :: Power Factor: >0.9
- :: Efficacy: 75 LPW
- :: Optics: White Translucent Acrylic Lens
- :: Construction: Spun aluminum Steel (Brushed Nickel Finish)
- :: Gasket: Closed Cell Neoprene Foam Gasket
- :: Operating Temp: -4ºF~104ºF
- :: Suitable for Damp Locations When Gasket is Used
- :: 5-Year Warranty
- :: Multi-CCT (selectable With Switch Is On The LED Board Under The Lens)
- :: Dimmable Down to 10% Using a Standard TRIAC LED Dimmer
- :: Total Lumens: 1500LM
- :: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 80
- :: IP Rating: IP20
Applications
- :: The LED Flush Mount Surface Fixture is a low profile down light intended for ceiling or wall mount applications. Driver on Board (DOB) technology, with no driver or transformer needed. These flush mount ceiling lights mount directly to a 4” deep dish junction box ideal for Residential and commercial applications
