SPEC SHEET

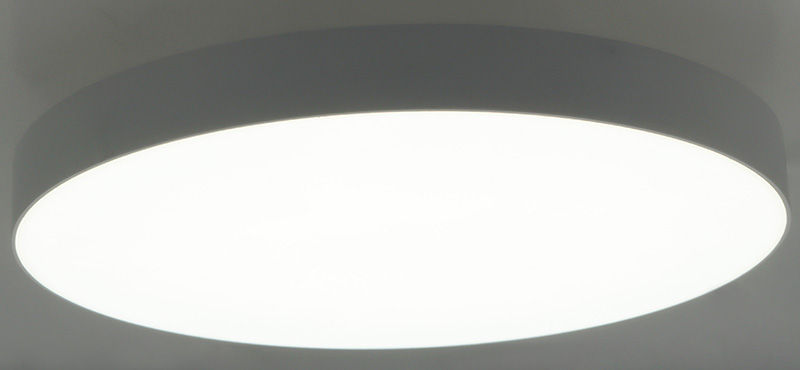

FEL-R10-MCT5

Edge-Less Architectural Flush Mount, 20W, 2700K/3000K/3500K/4000K/5000K

Technical Specs

  • :: Voltage: 120V AC
  • :: Power Factor: >0.90
  • :: Wattage: 20W
  • :: Efficacy: 70 LPW
  • :: White Finish
  • :: Die-cast Aluminum. Powder-Coated
  • :: Maximum Ambient Temperature: 104°F
  • :: 5-Year Warranty
  • :: Lens: White translucent acrylic lens
  • :: LED: Edge Lit LED Technology
  • :: Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
  • :: Total Lumens: 1400LM
  • :: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
  • :: Multi CCT (Selectable Switch on LED Board Under the Lens)
  • :: Color Rendering Index: CRI ≥ 9
  • :: Rated life: 50,000 hrs

Applications

  • :: This LED Center Basket Troffer Light is ideal for Hotels, Offices, Retail Outlets, Restaurants, Storage

Features

  • Dimmable
  • ETL Listed
  • 5 year warranty
  • MCT5
