FINAL PRODUCTION - ITEM BEING REPLACED

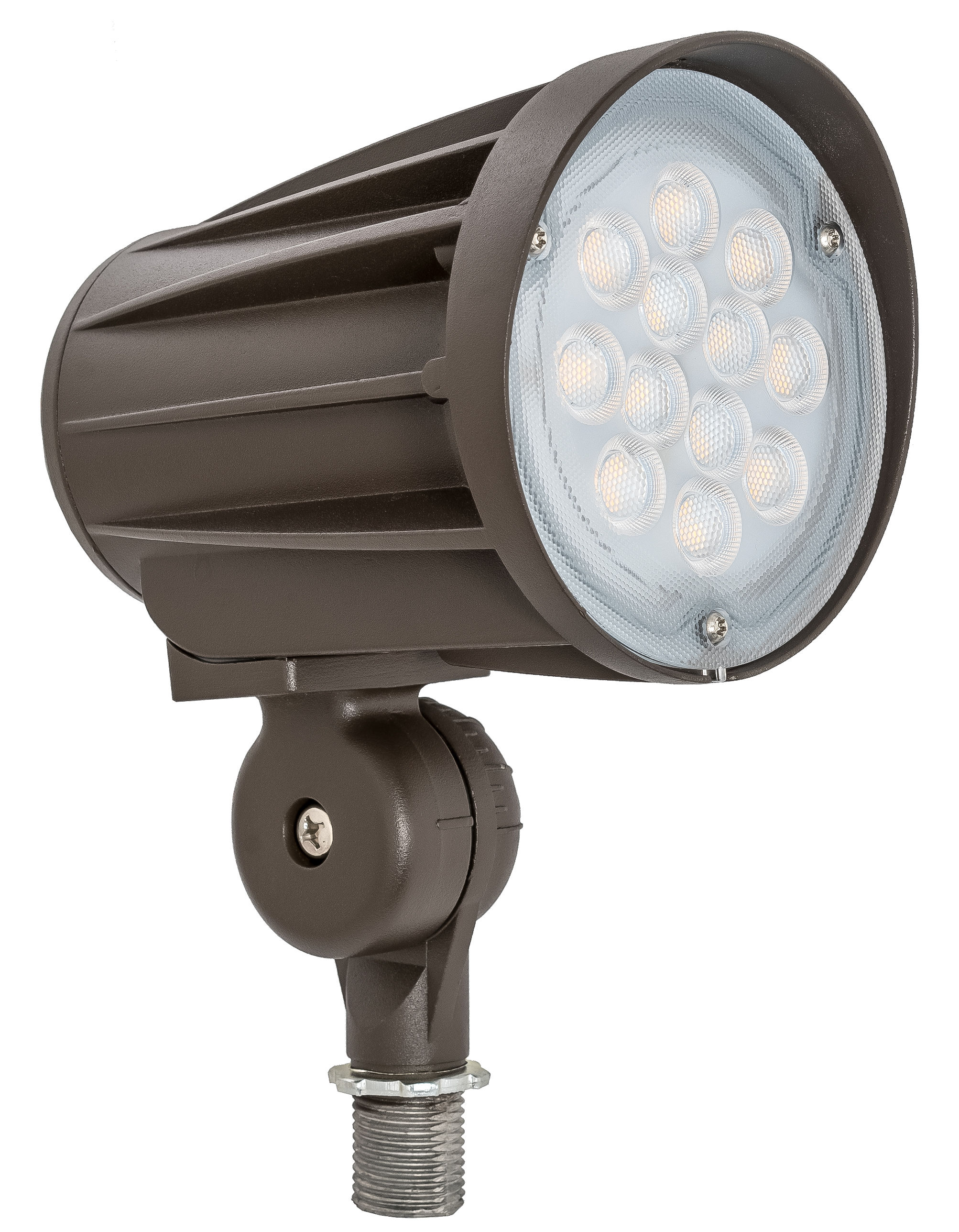

FLD2-28CW-KN

Garden & Flag Bullet Light, 120-277V, 28W, 5000K

Technical Specs

  • :: Westgate's powerful bullets
  • :: LED: LUMILEDs
  • :: Optical Lens: High transmiance PC, anti-UV and fire resistant
  • :: 13" #18 AWG stranded wires
  • :: 60° beam angle
  • :: Housing: Cast aluminum with powder coat finish (Bronze)
  • :: Mounting: 1/2" NPT knuckle
  • :: Voltage: 120~277V AC, 50/60Hz
  • :: Operating Temp: -4°F to 104°F
  • :: CRI: >80
  • :: Power Factor: >0.9
  • :: Maintenance free
  • :: 70,000 hour rated life
  • :: 7-year warranty
  • :: Suitable for Wet Locations, IP65

Applications

  • :: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
  • :: Replace existing HID flood lights/ wall packs
  • :: Great for use with motion sensors or other instant on/off controls

Features

  • Wet Location
  • UL Listed
  • DLC Listed
  • 120-277v
  • 70000 Hours
  • LM79
  • 7 year warranty
