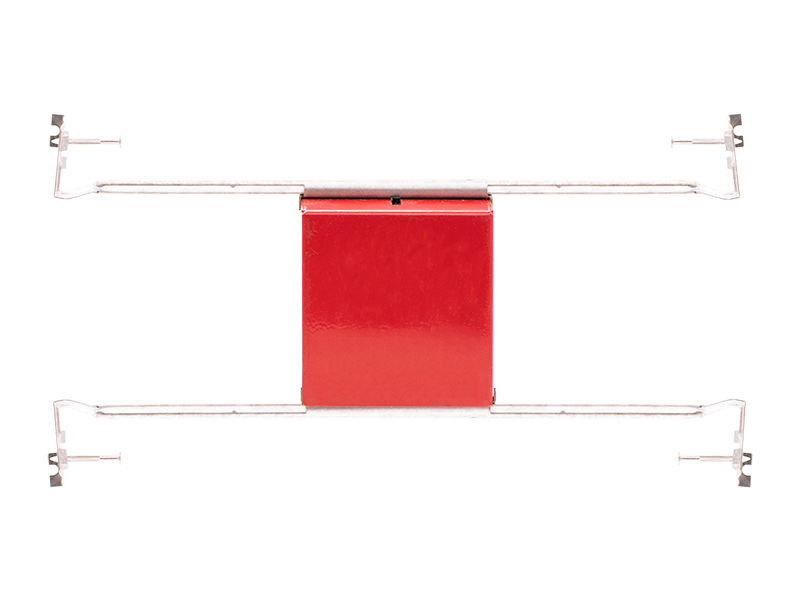

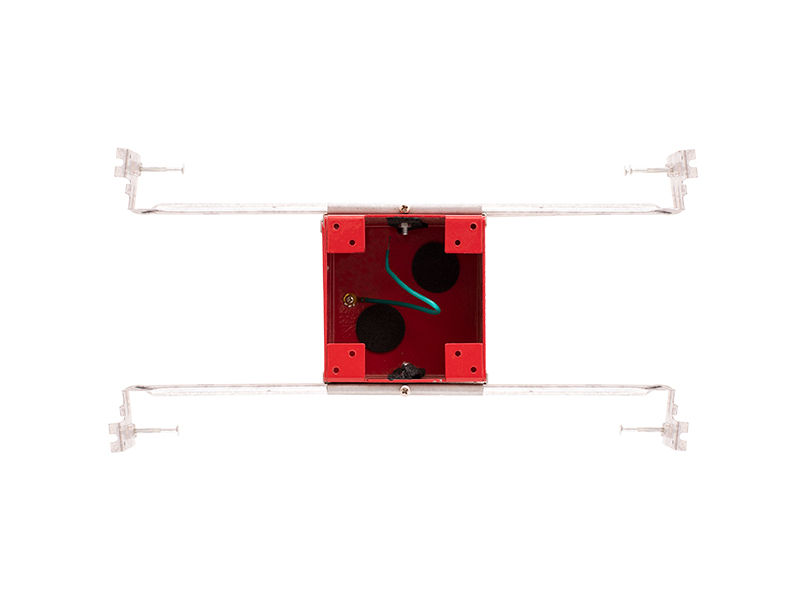

ICF4SJBB

:: ETL Type IC Rated, complies with the requirements of the Standard(s) for Metallic Outlet Boxes (UL-514A) and are identified with the ETL Listed Mark
:: ETL Listed for 2-Hour Fire Resistance to Meet and Exceed Strict Fire UL 263 Safety Code
:: ETL ASTM E283/E283M-19 Air Tight certified
:: Trims and Inserts Sold Separately
:: Integrated Non-Combustible Insulation Acts As a Sound Barrier Minimizing Sound Transfer Between Floors
:: Rated for Direct Contact With IC Insulation
:: Light Fixtures Sold Separately

:: The junction box housing must be installed per the International Building Code Section 714 guidelines to maintain up to 2 hour ceiling fire rating. Precise ceiling cutout required. For use in from 1/2” to 1 1/4” ceiling thickness.
:: Compatible with surface mount fixtures
:: See installation sheet for detailed information
