LCFH-3LR-MCT5

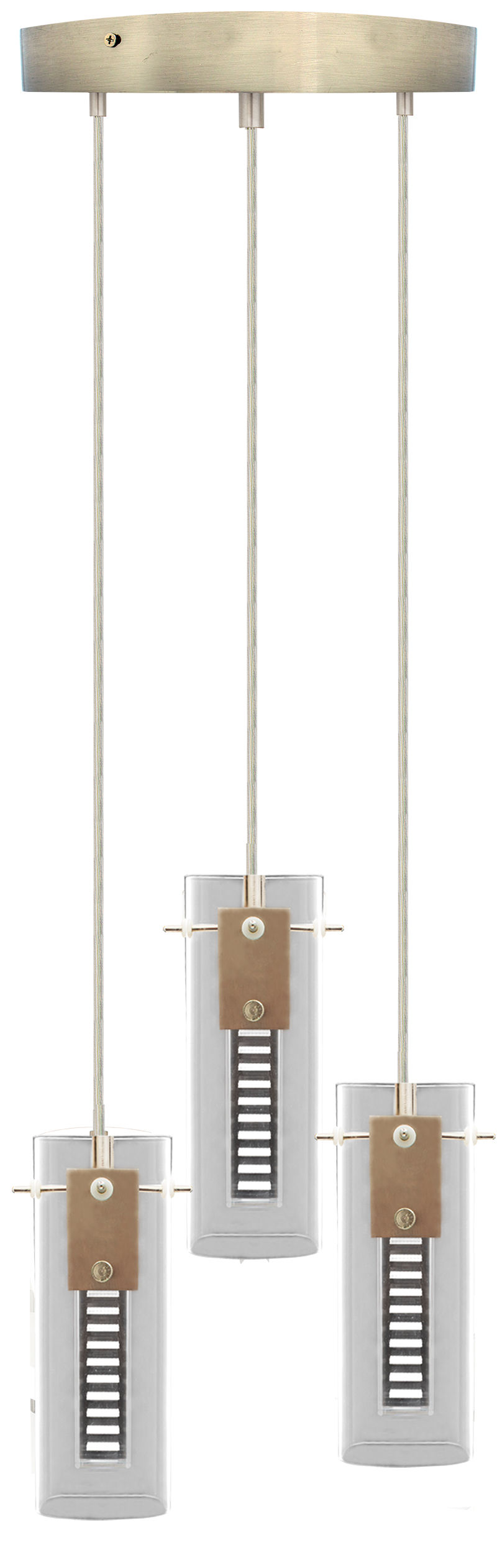

LCFH - LED Multi-CCT Integrated Hologram Pendant Lights

Technical Specs

  • :: Voltage: 120V AC 50/60Hz
  • :: Wattage: 36W
  • :: Power Factor: >0.90
  • :: Efficacy: 68 LPW
  • :: Brushed Nickel Finish
  • :: Glass Material: 5/64” (2mm) thickness, Ultra Clear Glass
  • :: Power Cord is 60” Long
  • :: Maximum Ambient Temperature: -22°F to 104°F
  • :: IP20 indoor only
  • :: Dimming: TRIAC Dimming (Dimmable Down to 5% Compatible with Traic and ELV Dimmers)
  • :: Total Lumens: 2430LM
  • :: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
  • :: Multi CCT (Selectable Switch on back of the fixture )
  • :: Color Rendering Index: CRI ≥ 90
  • :: Beam Angle: 120°
  • :: Rated life: 50,000 Hrs

Applications

  • :: Integrated LED glass pendant is a contemporary and stylish design that can be used by itself as an accent piece, or grouped together to light a kitchen island, bar, or pool table.

Features

  • ETL Listed
  • MCT5
  • Dimmable
