LCFR-MCT5-WG

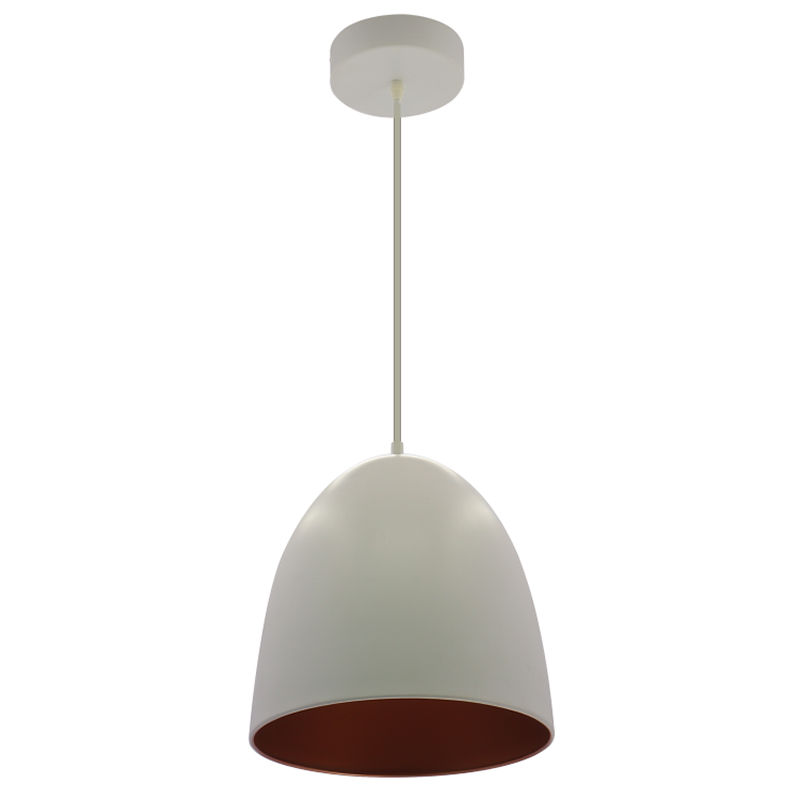

12" Large Integrated LED Dome Pendant with 6Ft Cord, 24W, 2700K/3000K/3500K/4000K/5000K

Technical Specs

  • :: Voltage: 120V AC 50/60Hz
  • :: Wattage: 24W
  • :: Power Factor: >0.90
  • :: Efficacy: 34 LPW
  • :: Spun Steel Housing
  • :: Polycarbonate Lens
  • :: Power Cord is 60" Long
  • :: Maximum Ambient Temperature: -22°F to 104°F
  • :: IP55 Suitable for Dap Location
  • :: 5-Year Warranty
  • :: Multi CCT (Selectable Switch under the lens)
  • :: Dimming: TRIAC Dimming (Dimmable Down to 5% Compatible with TRIAC and ELV Dimmers)
  • :: Total Lumens: 820LM
  • :: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
  • :: Color Rendering Index: CRI ≥ 90
  • :: Beam Angle: 120°
  • :: Rated Life: 50,000 Hrs

Applications

  • :: Pendant lights are stylish hanging light fixtures that double as task lighting. Perfect for kitchens, office or living areas, our vintage pendant lighting is available in 2 finishes that will look good in any home.

Features

  • MCT5
  • Energy Star
  • DAMP
  • ETL Listed
  • Dimmable
