Documents

SPC

SPEC SHEET

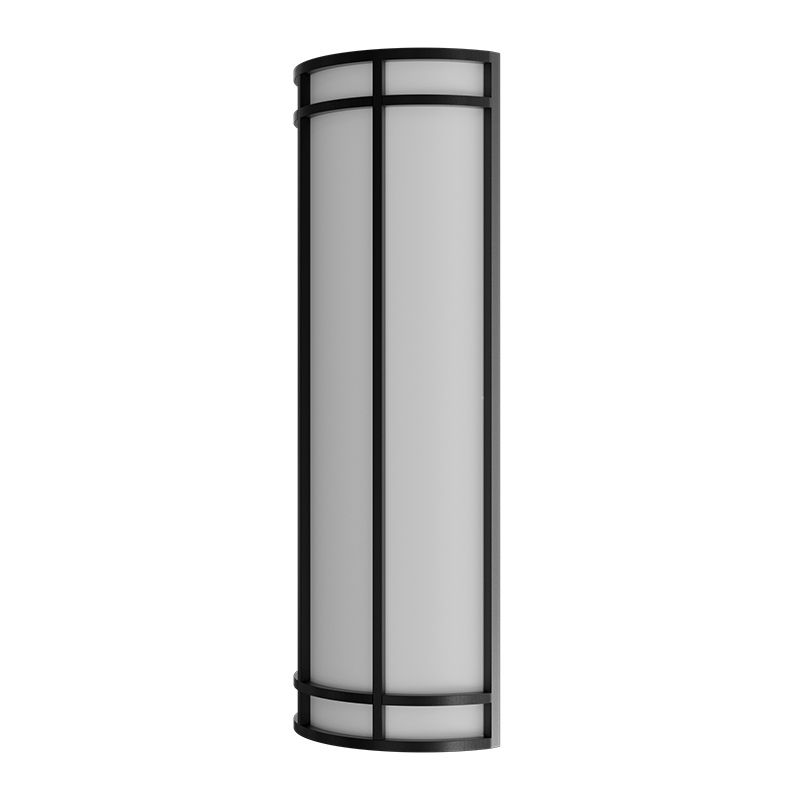

LDSC-24-MCTP-DD-BK

:: Voltage: 120-277V
:: Wattage: 20W/25W/30W
:: Power Factor: >0.9
:: Efficacy: 80 LPW
:: Die-Cast Aluminum Housing With Powder Coat Finish
:: High-Transmission Frosted Plastic Lens With Excellent Distribution and Uniformity
:: Direct Replacement For Fluorescent
:: Full Distribution LED luminaries
:: IP Rating: IP65
:: Operating Temperature: -4°F to 113°F
:: Suitable For Wet Locations
:: Dimming: (Dual Function) Triac Dimmable at 120V
:: & 0-10V Dimming at 120-277V
:: Multi CCT: Selectable CCTs Switch Located On The LED Board
:: Total Lumens: 2400LM
:: Color Temperature: 3000K/4000K/5000K
:: Color Rendering Index: ≥ 80
:: Beam Angle: 120°

:: Motel, Hotels, Hospitals, hallways, stairways, dining areas, foyers, and meeting rooms
