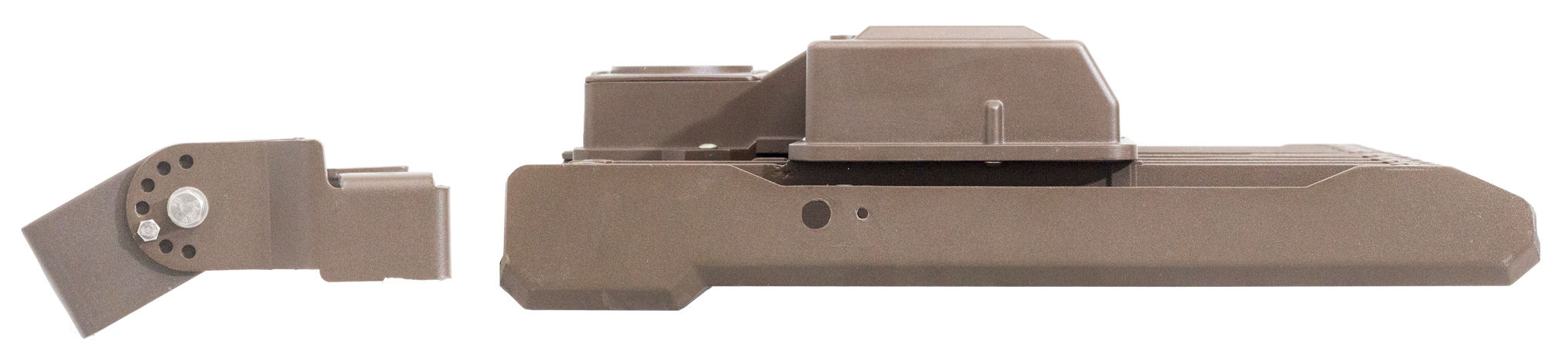

LFCO-YK

:: With snap-on & bolt mounting options for one-person installations. Select a mounting option (Sold separately)
:: Housing: Die-cast aluminum housing with powder coat finish (Dark Bronze)
:: Lumileds Lexeon high flux LED
:: TIR optic lens - TYPE III
:: Cord type: 3.2' SJTW 18/3 AWG cable
:: Voltage: 100-277V; 60Hz AC
:: Operating Temp: -40°F to 104°F
:: Up to 130 lumens per watt
:: CRI: 70
:: Beam Angle: 140°X80°
:: 70,000 hour rated life
:: 7-year warranty
:: Suitable for Wet Locations, IP65

:: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
:: Replace existing HID flood lights/ wall packs
