LHCX-255-320W-MCTP-SR

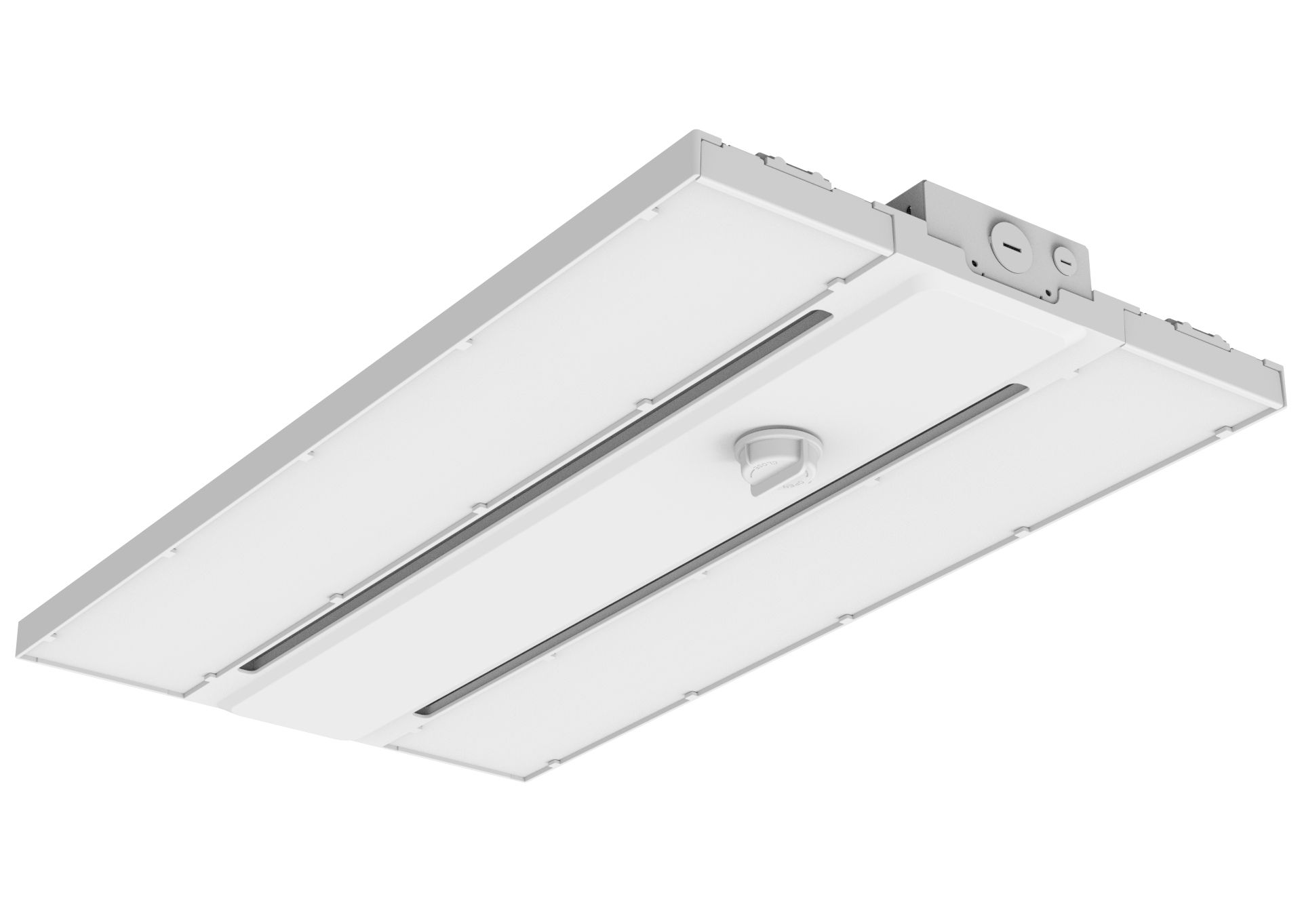

Compact Linear Sensory Ready Highbay Lights, 255W/290W/320W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120~277V AC/50~60 Hz
- :: Wattage: 255W/290W/320W
- :: Power Factor: >0.95
- :: Efficacy: 140 LM/W
- :: Changeable Lenses. Hinge Doors Provided to Access The Lens. See Lens Accessories.
- :: Steel Housing
- :: Steel Thickness: 24 Gauge
- :: V-Hooks included
- :: Aluminum LED board
- :: Operating Temperature: -4°F ~ 131°F
- :: Suitable For Damp Locations
- :: 5-Year Warranty
- :: Dimming: 1~10V Dimmable
- :: Multi CCT and Power: The Switch is On The Driver
- :: Lens: Polycarbonate Lens
- :: Total Lumens: 44800LM Max.
- :: Color Temperatures: 3000K/4000K/5000K
- :: Color Rendering Index: >80
- :: Pre-Installed 90° x 90° Lens. See Lens Accessories
- :: Wide Beam Angle
- :: LED SMD Type: Edison 2835
- :: 50,000 Hours Rated Life
Applications
- :: Warehouse
- :: Manufacturing Plants Distribution Centers
- :: Industrial Commercial
- :: Grocery Stores Gymnasiums
Features
ACCESSORIES
| Product Name | Description | |||
|---|---|---|---|---|
 LHCX-WG3  SPEC | Wireguard for 320W Max Model | |||
| 600W Max, Zhaga 12-24VDC Microwave Sensor, Black, With Base (Optional Remote Control WEC-3RC) | ||||
| 600W Max, Zhaga 12-24VDC Microwave Sensor, Bluetooth App Ready, Black, With Base (Optional Remote Control WEC-3RC) | ||||
| 600W Max, Zhaga 12-24VDC PIR Sensor, White, With Base (Optional Remote Control WEC-3RC) |
