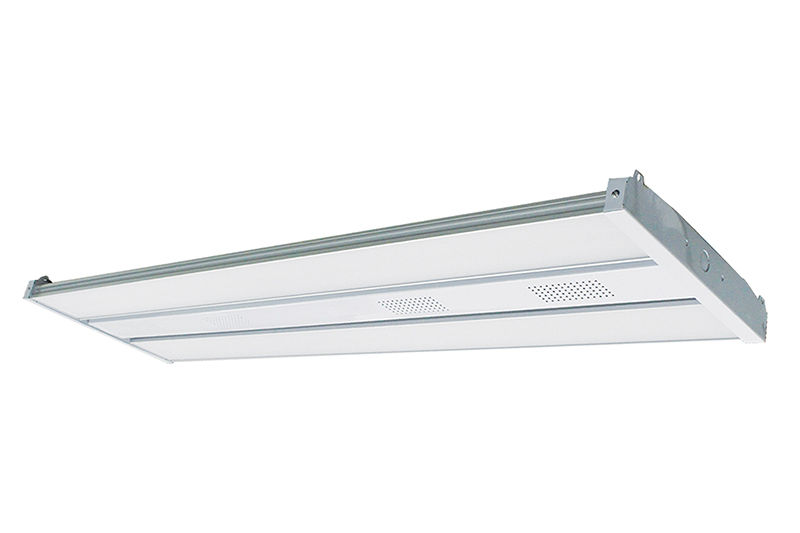

LLHB4-200W-MP-40K-D
Multi Power 4th Generation of Linear High Bays, 100W/150W/200W, 4000K
Technical Specs
- :: Voltage: 120~277VAC/50~60 Hz
- :: Wattage: 100W/150W/200W
- :: Power Factor: >0.95
- :: Efficacy: 136 LPW
- :: Surge Protector
- :: Steel Housing
- :: Steel Thickness: 24 Gauge
- :: V-Hooks
- :: Unprecedented Quality.
- :: Aluminum LED board
- :: Operating Temperature: -4°F to 131°F
- :: Suitable For Damp Locations
- :: Dimming: 0~10V Dimmable
- :: Lens: Polycarbonate Lens
- :: Multi-Power: The Switch is On The Driver
- :: Total Lumens: 27200LM Max.
- :: Color Temperatures: 4000K
- :: Color Rendering index: >80
- :: Wide Beam angle
- :: LED SMD Type: Edison 2835
Applications
- :: Warehouse
- :: Manufacturing Plants Distribution Centers
- :: Industrial Commercial
- :: Grocery Stores
- :: Gymnasiums
- :: Cold Storage
