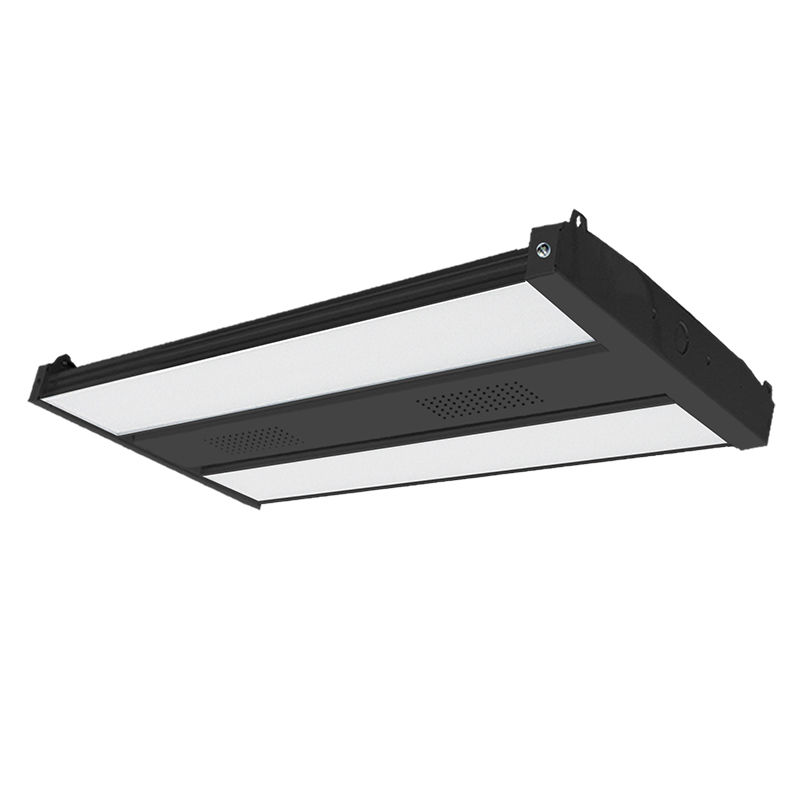

LLHB4-80-150W-MCTP-BK
Multi Power 4th Generation of Linear High Bays, 80W/110W/150W, 3500K/4000K/5000K
Technical Specs
- :: Voltage: 120~277V AC/50~60 Hz
- :: Wattage: 80W/110W/150W
- :: Power Factor: >0.95
- :: Efficacy: 125LM/W Surge Protector
- :: Steel Housing
- :: Steel Thickness: 24 Gauge
- :: V-Hooks
- :: Aluminum LED board
- :: Operating Temperature: -4°F ~ 131°F
- :: Suitable for Damp Locations
- :: 5-Year Warranty
- :: Dimming: 0~10V dimmable
- :: Multi CCT and Power: The Switch is in the Driver
- :: Lens: Polycarbonate Lens
- :: Total Lumens: 18750LM Max.
- :: Color Temperatures: 3500K/4000K/5000K
- :: Color Rendering index: >80
- :: Wide Beam angle
- :: 50,000 Hours Rated Life
Applications
- :: Warehouse
- :: Manufacturing Plants Distribution Centers
- :: Industrial Commercial
- :: Grocery Stores
- :: Gymnasiums
- :: Cold Storage
