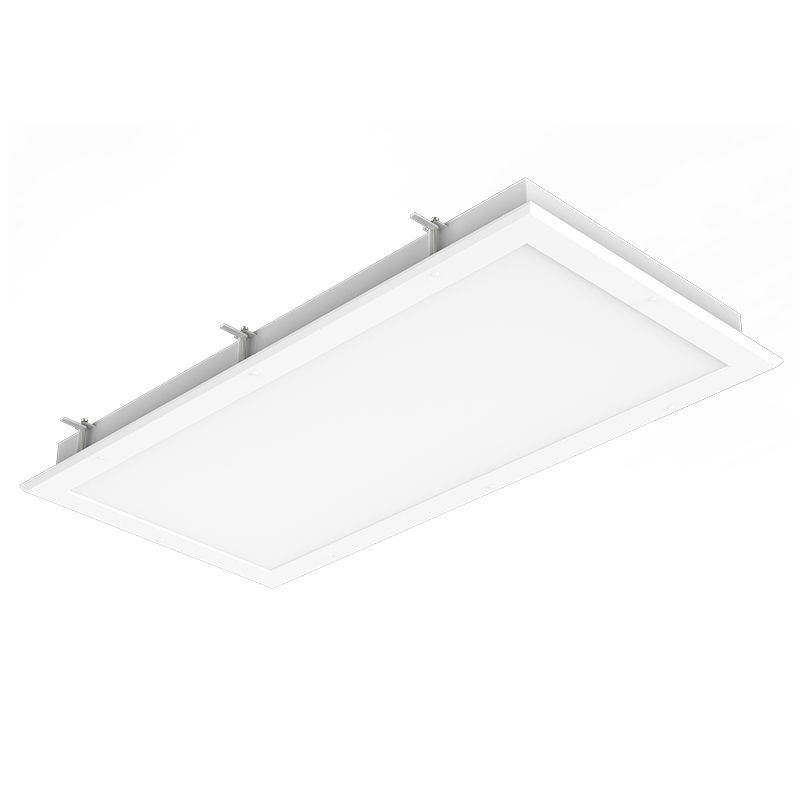

LPCR-2X4-MCTP

2x4 Premium IP65 Cleanroom Panel Lights, 30W/40W/50W, 3500K/4000K/5000K

Technical Specs

  • :: Voltage: AC120V-277V 50/60Hz
  • :: Power Factor: >0.90
  • :: Wattage: 30W/40W/50W
  • :: Fixture Operating Voltage: 36VDC
  • :: Rated Input Current (mA): 420/ 337/ 253mA
  • :: Total Harmonic Distortion: ≤ 20 %
  • :: Efficacy: 125 LPW
  • :: White Finish
  • :: Earthquake Hooks and Suspension Hooks pre-installed
  • :: External driver mounted on top
  • :: Operating Temperature: -68ºF~104ºF
  • :: IP Rating: IP65
  • :: 5-Year Warranty
  • :: Multi CCT & Multi Power (Selectable Switch On Back of Fixture)
  • :: Dimmable: 0~10V Dimming
  • :: Total Lumens: 6250LM
  • :: Color Temperatures: 3500K/4000K/5000K
  • :: Color Rendering Index: CRI ≥ 80
  • :: Beam Angle: 110°
  • :: Rated life: 50,000 Hrs

Applications

  • :: Healthcare Facilities
  • :: Food Processing Plants
  • :: Pharmaceutical Manufacturing
  • :: Laboratories
  • :: Biotech and Life Sciences

Features

  • MCTP
  • 5 year warranty
  • Dimming 0-10V
  • UL Listed
  • NSF
