LRD-TL-10W-MCT5-4R-WH

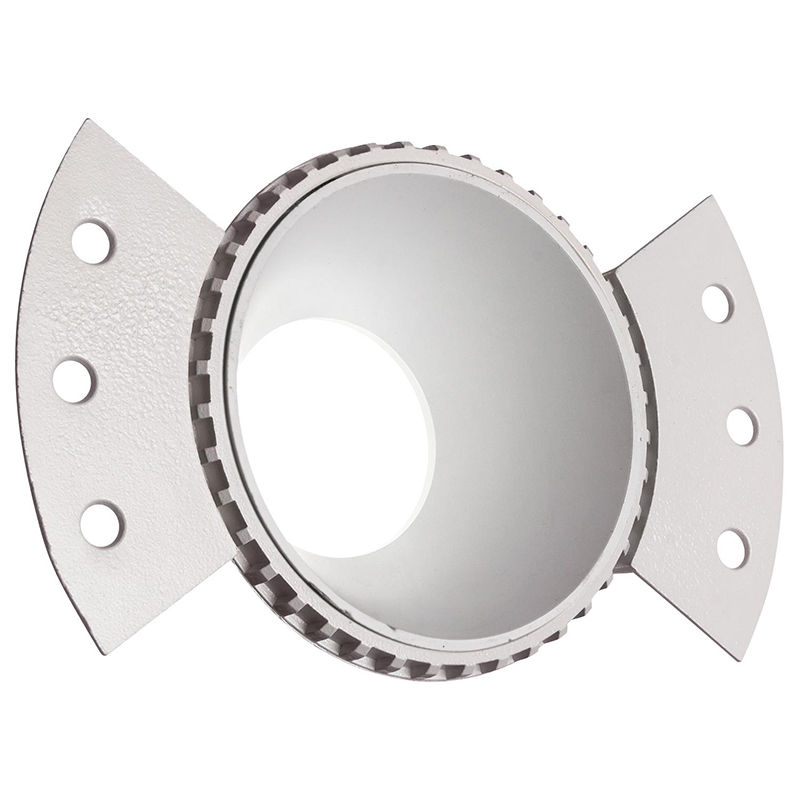

LED 4" Round Architectural Trimless Recessed Lights, 10W, 2700K/3000K/3500K/4000K/5000K

Technical Specs

  • :: Voltage: 120VAC
  • :: Wattage: 10W
  • :: Power factor: >0.90
  • :: Efficacy: Up to 70 LM/W
  • :: Up to 9 AWG18 Wires
  • :: Flanges can be adjusted for plaster up to 5/8" Thick
  • :: Die-Cast Aluminum With White Powder Coat Finish
  • :: Clear Glass Lens
  • :: Junction Box Included With Fixture
  • :: Type IC Rated: Approved For Direct Contact With Insulation
  • :: Operating Temperature: 104°F
  • :: Air-tight and Type IC Rated: No Housing Required
  • :: Damp Location Approved
  • :: 5-Year Warranty
  • :: Dimming: Dimmable Down to 10% Using Standard TRIAC LED Dimmer
  • :: Total Lumens: 700LM
  • :: Color Temperature: 2700K/3000K/3500K/4000K/5000K
  • :: Color Rendering index: >90
  • :: Beam Angle: 24°
  • :: Lifespan: 50,000 Hrs.
  • :: Multi CCT (Selectable Switch On The Back Of The Driver)

Applications

  • :: Ideal for New as well as old residential and commercial constructions

Features

  • ETL Listed
  • 90 CRI
  • Title 24
  • DAMP
  • MCT5
  • Dimmable
