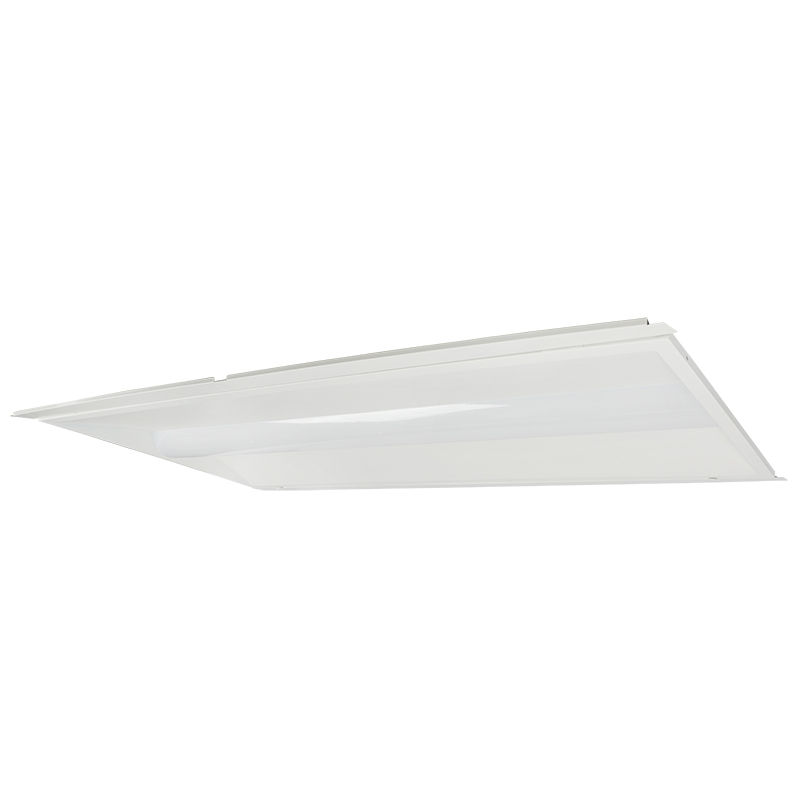

LRT-HL-2X4-MCTP

:: Voltage: 120-277VAC 50/60Hz
:: Wattage: 30W/40W/50W
:: Power Factor: >0.97
:: Efficacy:125 LPW
:: White Finish
:: Galvanized Steel Construction
:: Integrated Securement Tabs for Securement to Existing Troffer Housing.
:: Minimum Depth of only 3” Necessary To Allow Proper Clearance And Installation
:: Retrofit Kit Is Powder Coated After Fabrication With High Quality, Durable Finish To Ensure No Unfinished Edges And Avoid Future Potential Of Corrosion.
:: Components Fit Together Easily Without The Need For tools during installation. in addition the light module Can Be Removed From Below The Ceiling For Continent Maintenance And Upgrades
:: Operating Temperature: -4°F ~ 122°F
:: 5-Year Warranty
:: Multi CCT & Power (Selectable Switch On Back Of Fixture)
:: Dimmable: 0~10V Dimming
:: LED Type: SMD 2835
:: Total Lumens: 3750LM/5000LM/6250LM
:: Color Rendering Index: CRI ≥ 80
:: Color Temperatures: 3500K/4000K/5000K
:: Rated Life: 50,000 Hours

:: Elevate your lighting experience with the Westgate LED Retrofit Troffer – a perfect blend of innovation, efficiency, and reliability. Designed to seamlessly fit into existing troffer installations, this retrofit solution transforms traditional lighting systems into energy efficient, cost-effective lighting with minimal effort.
