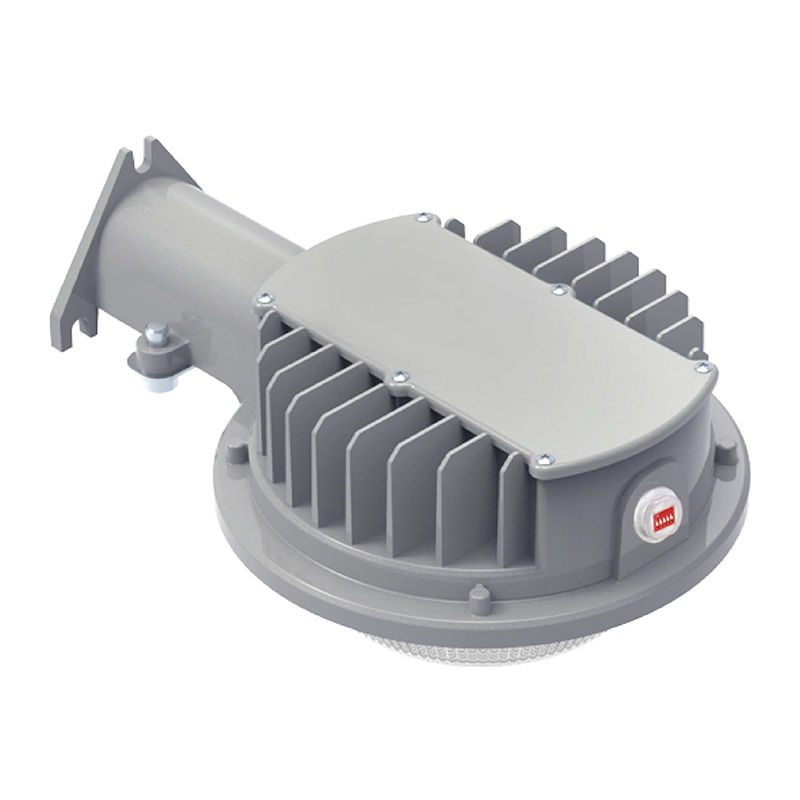

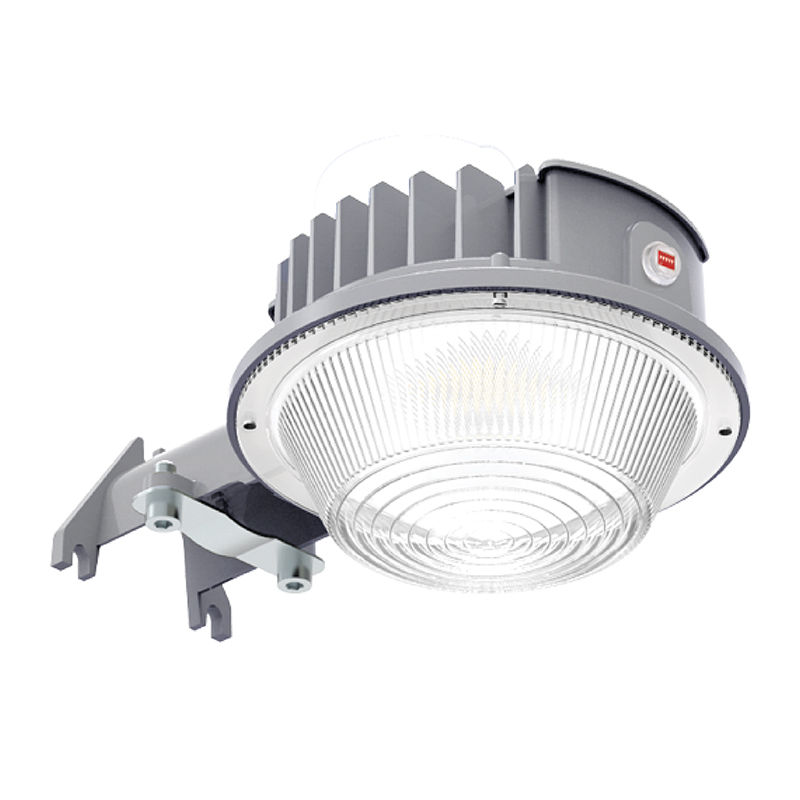

LRX-36-60W-MCTP-P
LRX-36-60W - Power & Color Temp. Selectable Barn Area Light with Photocell
Technical Specs
- :: Voltage: 120-277V AC 60Hz
- :: Wattage: 36W/42W/60W
- :: Power Factor: >0.90
- :: Efficacy: 130 LPW
- :: THD: <20%
- :: Aluminum Housing, Gray Powder-Coated
- :: Lens: High light Transmittance PC, Anti-UV and Fire Resistant
- :: Mounting Strap Included
- :: DC Button Photocell Included.
- :: IP65, Suitable for wet locations
- :: Suitable for wall or pole mount applications
- :: Operating Temperature: -40° F to 113° F
- :: 7-Year Warranty
- :: Total Lumens: 4680LM/5460LM/7800LM
- :: Multi CCT, Switch is on the housing
- :: Color Temperatures: 3000K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 120°
- :: Rated life: 70,000 Hrs
Applications
- :: Farms/Barns, Storage Sheds, Entryways/Pathways, Industrial Yards, Security, Building Perimeters, Area Lighting
