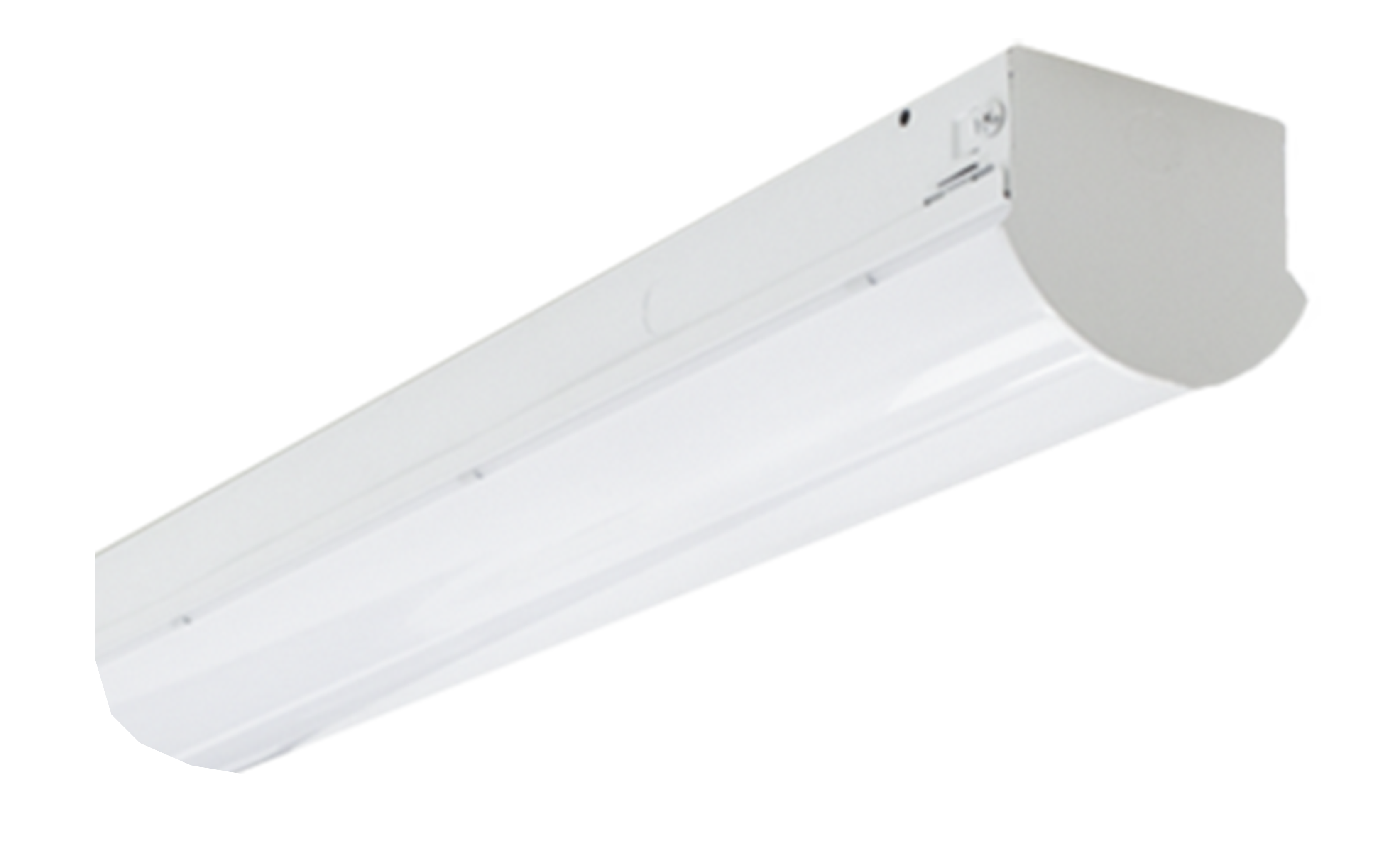

LSL-3FT-30W-MCT-D
LED Strip Lights, 30W, 3500K/4000K/5000K
Technical Specs
- :: Voltage: 120-277VAC 50/60Hz
- :: Wattage: 30W
- :: Power Factor: >0.98
- :: Efficacy: 104/ 105/ 109 LPW
- :: White Finish
- :: Housing: Heavy Die-Formed Steel, White Powder Coated
- :: Lens Snaps into the tabs of the Housing Fixture
- :: Ceiling-Mounted
- :: Same Footprint as Traditional 2-lamp Strip Lights
- :: Mounting: Surface Mount, Wall Mount or Suspended
- :: IP44 Suitable For Damp Location
- :: Operating Temperature: -22ºF -104ºF
- :: Dimmable: 0~10V Dimming
- :: Chip: Samsung
- :: Total Lumens: 3120LM/ 3150LM/ 3280LM
- :: Color Temperatures: 3500K/4000K/5000K
- :: Multi-CCT (Selectable Switch Inside Fixture)
- :: Color Rendering Index: CRI ≥ 80
- :: IP Rating: IP44
Applications
- :: Ideal for architectural lighting solutions, a variety of industrial, commercial, and residential applications
