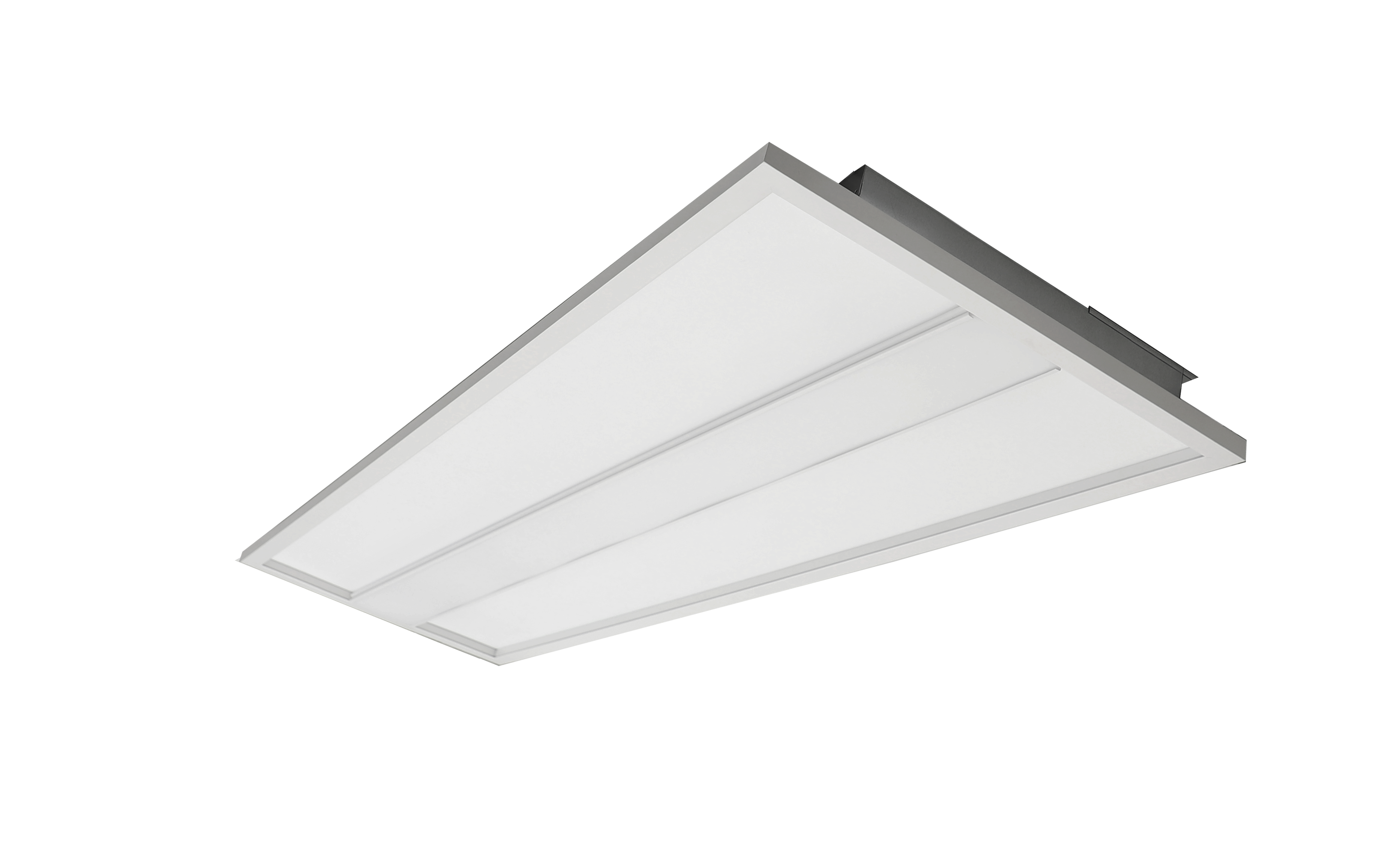

LTRB-1X4-MCTP
LED Multi Power & CCT Back-Lit Troffer, 20W/30W/40W, 3500K/4000K/5000K
Technical Specs
- :: Voltage: AC120V-2777V 50/60Hz
- :: Power Factor: >0.90
- :: Wattage: 20W/30W/40W
- :: Efficacy: 130/127/120LW
- :: Fixture Operating Voltage: 36VDC
- :: Rated Input Current (mA): 337/253/168mA
- :: Total Harmonic Distortion: ≤20%
- :: White Finish
- :: Earthquake Hooks and Suspension Hooks pre-installed
- :: External driver mounted on top
- :: Operating Temperature: -68ºF~104ºF
- :: IP Rating: IP20 (Indoor use only)
- :: Rated Life: 50,000 Hrs
- :: Dimmable: 0~10V Dimming
- :: Total Lumens: 2600LM/3800LM/4800LM
- :: Color Temperatures: 3500K/4000K/5000K
- :: Multi CCT & Multi Power (Selectable switch on back of fixture)
- :: Color Rendering Index: CRI ≥ 80
- :: 5-Year Warranty
- :: Beam Angle: 110°
Applications
- :: Ideal for hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, educations facilities and more.
