LVA-24-MCT5-BN

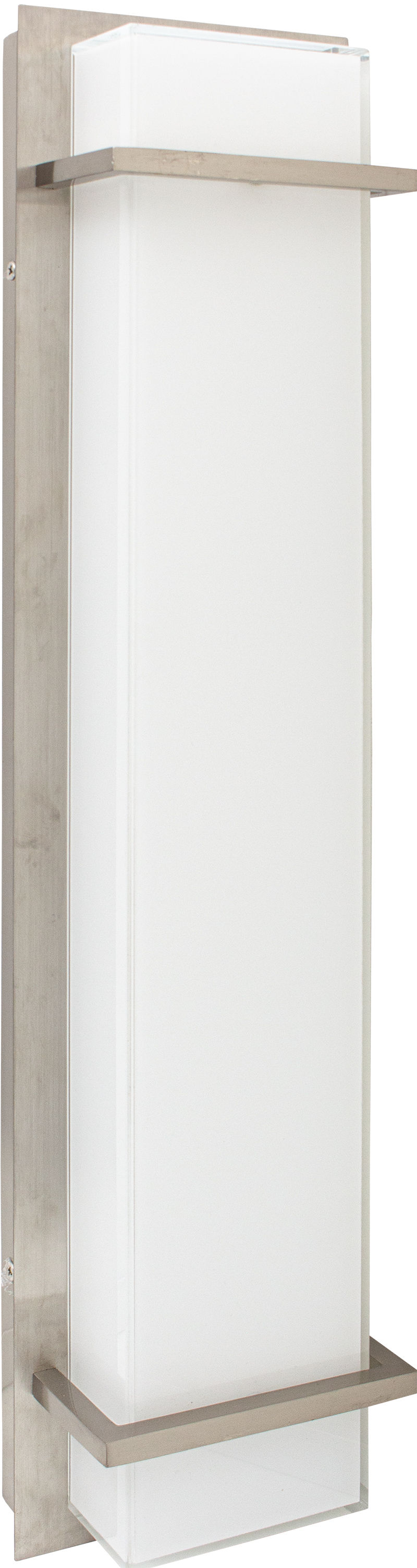

LVA Architectural LED Multi-CCT Vanity Light with Cube PC Lens, 16W, 2700K/3000K/3500K/4000K/5000K
Technical Specs
- :: Voltage: 120V AC 50/60Hz
- :: Wattage: 16W
- :: Power Factor: >0.95
- :: Total Harmonic Distortion: ≤ 20 %
- :: Efficacy: 70 LPW
- :: Corrosion and Heat Resistance Powder Coated
- :: Finish: Brushed Nickel
- :: Durable Die-cast Aluminum
- :: Lens Type: Polycarbonate Lens
- :: Suitable for Damp Location
- :: Operating Temperature: -22°F to 104°F
- :: Dimming: TRIAC Dimming (Dimmable Down to 5% Compatible with Traic and ELV Dimmers)
- :: Total Lumens: 1120LM
- :: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
- :: Multi-CCT(Selectable Switch Inside Fixture)
- :: Color Rendering Index: CRI ≥ 90
- :: 50,000 Hours Rated Life
- :: 5-Year Warranty
- :: Beam Angle: 104.8°(H) x 100.5°(V)
Applications
- :: Ideal for Offices, Retail Stores, Showrooms, Residential and Damp Environment Lighting Applications.
