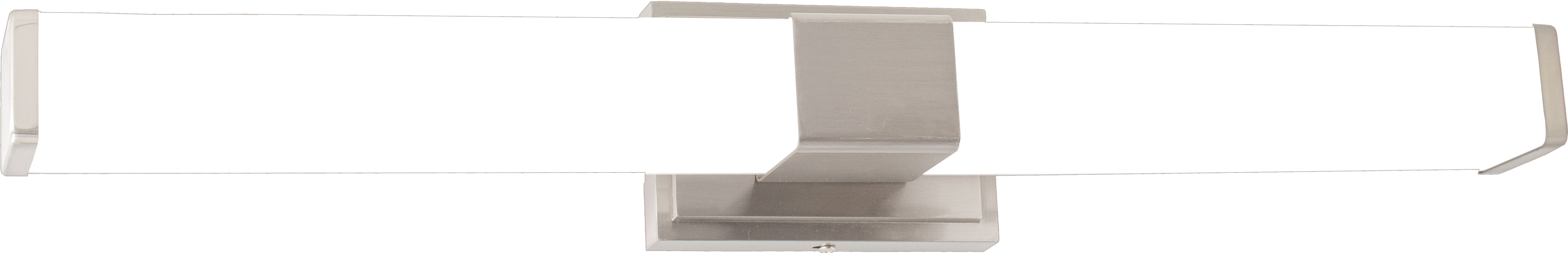

LVC-36-MCT5-BN

LVC Architectural LED Multi-CCT Vanity Light with Tube PC Lens

Technical Specs

  • :: Voltage: 120V AC 50/60Hz
  • :: Wattage: 24W
  • :: Power Factor: >0.95
  • :: Total Harmonic Distortion: ≤ 20 %
  • :: Efficacy: 70 LPW
  • :: Corrosion and Heat Resistance Powder Coated
  • :: Finish: Brushed Nickel
  • :: Durable Die-cast Aluminum
  • :: Lens Type: Polycarbonate Lens
  • :: Suitable for Damp Location
  • :: Operating Temperature: -22°F to 104°F
  • :: Dimming: TRIAC Dimming (Dimmable Down to 5% Compatible with Traic and ELV Dimmers)
  • :: Total Lumens: 1680LM
  • :: Color Temperatures: 2700K/ 3000K/3500K/4000K/5000K
  • :: Multi-CCT(Selectable Switch Inside Fixture)
  • :: Color Rendering Index: CRI ≥ 90
  • :: 50,000 Hours Rated Life
  • :: 5-Year Warranty
  • :: Beam Angle: 104.8°(H) x 100.5°(V)

Applications

  • :: Ideal for Office, Retail Store, Showroom, Residential Applications and Damp Environment Lighting Applications

Features

  • MCT5
  • ETL Listed
  • Dimmable
