SPEC SHEET
RDDS6-MCT5

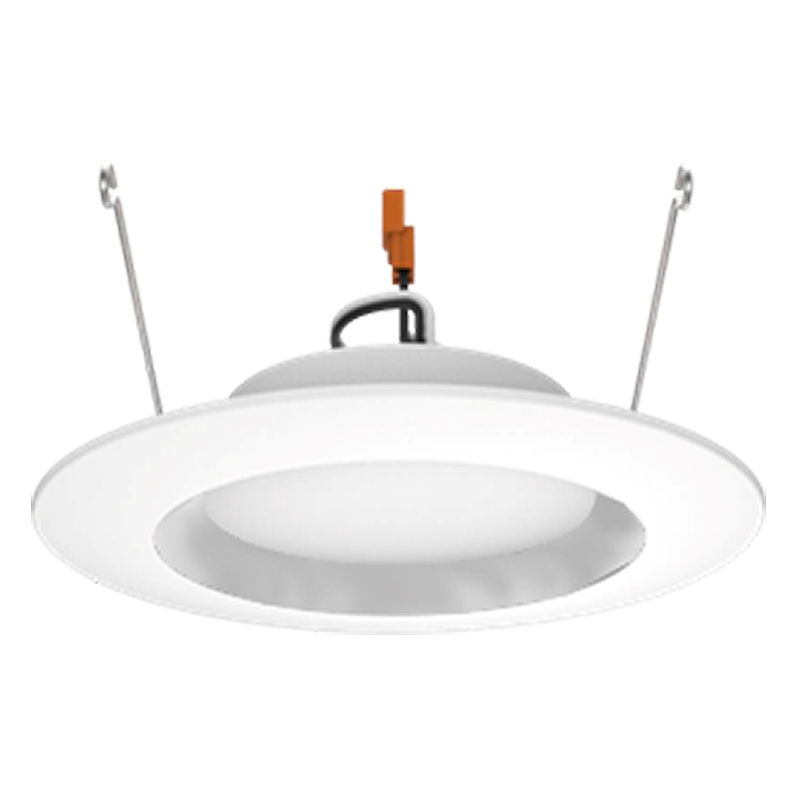

Eco Shallow PC DOB Recess Trim Light, 10W, 2700K/3000K/5000K/4000K/5000K
Technical Specs
- :: Voltage: 120V AC
- :: Power Factor: >0.90
- :: Wattage: 10W
- :: Efficacy: 100 LPW
- :: Composite Polycarbonate, White Finish
- :: Maximum Ambient Temperature: 104°F

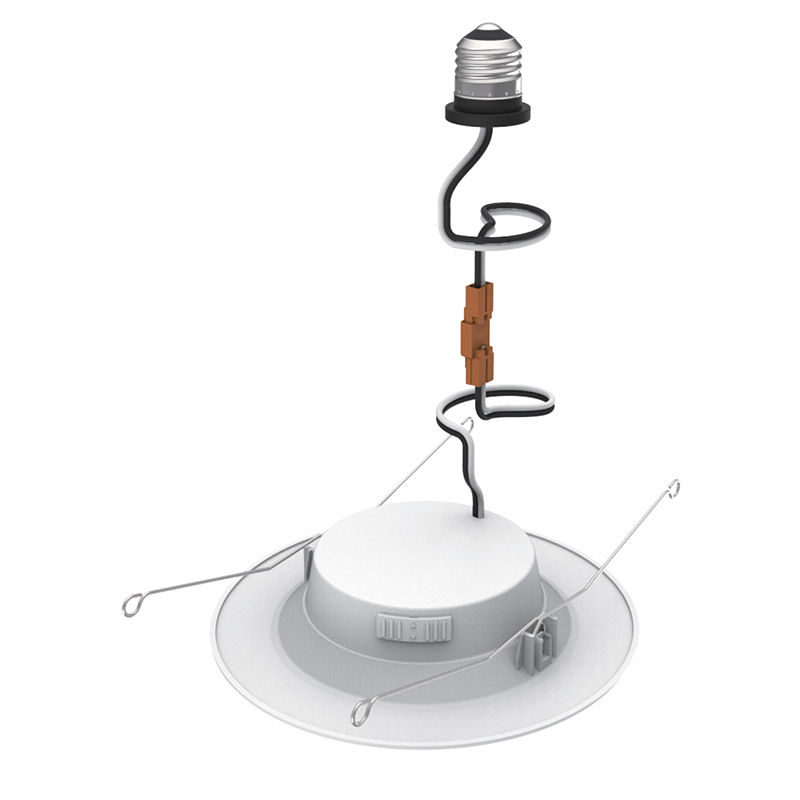

- :: 8” E26 Adaptor Included
- :: Fits in Standard and Shallow 5” & 6” Recessed Housings
- :: Rated life: 50,000 hrs
- :: White Finish
- :: 5-Year Warranty
- :: Dimming: TRIAC Dimming (Using Standard TRIAC
- :: LED Dimmers)
- :: Total Lumens: 1000LM
- :: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
- :: Multi CCT (Selectable Switch on the Back of the driver)
- :: Color Rendering Index: CRI ≥ 90
Applications
- :: LED retrofit trim have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications.
