RSL8-MCT5-WP
Wet Location LED 5CCT Slim Recessed Lights, 18W, 2700K/3000K/3500K/4000K/5000K
Technical Specs
- :: Voltage: 120V AC
- :: Output Voltage: 36VDC
- :: Power Factor: >0.90
- :: Wattage: 18W
- :: Efficacy: 75 LPW
- :: Total Harmonic Distortion: ≤15 %
- :: 1/4"Thick
- :: Up to 9 AWG18 Wires
- :: Die-cast Aluminum with White Powder Coat Finish
- :: Pot Light Housing is Not Required Even for Insulated Ceiling

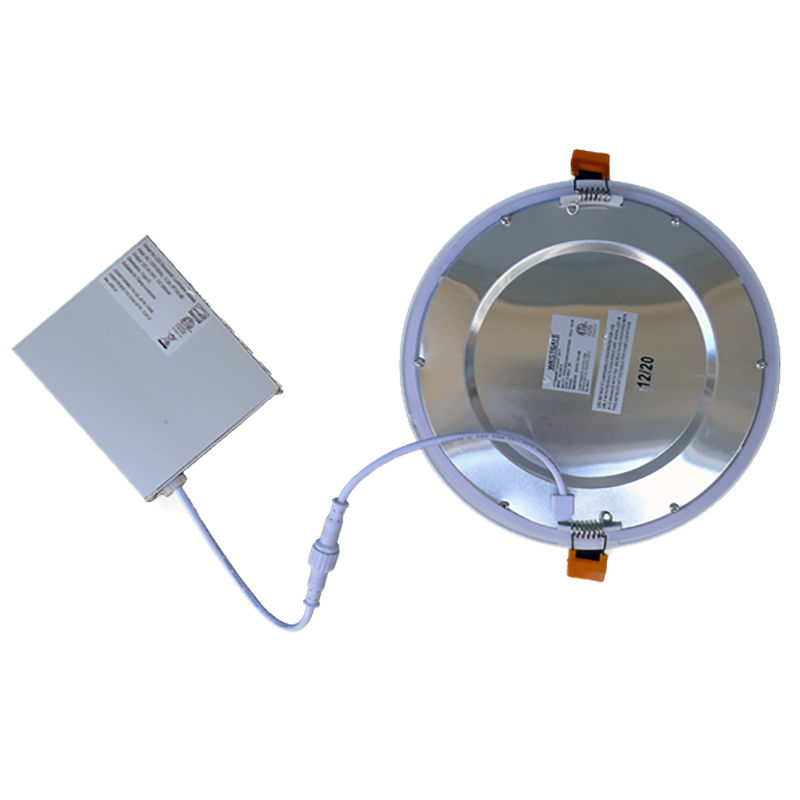

- :: Junction Box 1" Thick Included with Fixture
- :: Typel Crated: Approvd for Direct Contact with Insulation
- :: Maximum Ambient Temperature: -40°F to 104°F
- :: Suitable for Wet Location
- :: Dimming: Dimmable Down to 10% Using a Standard TRIAC LED Dimmer
- :: Lens: 0.125" White Translucent Acrylic
- :: Can Rotate after Installation to Align
- :: LED: Seoul DOB (Driver on Board) Technology
- :: Optics: White Translucent Acrylic
- :: Total Lumens: 1350LM
- :: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
- :: Multi CCT (Selectable Switch on the Back of the Driver)
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 100°-110°
- :: Rated Life: 50,000 Hrs
Applications
- :: LED recessed trims have been designed to be a flexible lighting solution for new construction applications, ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications
