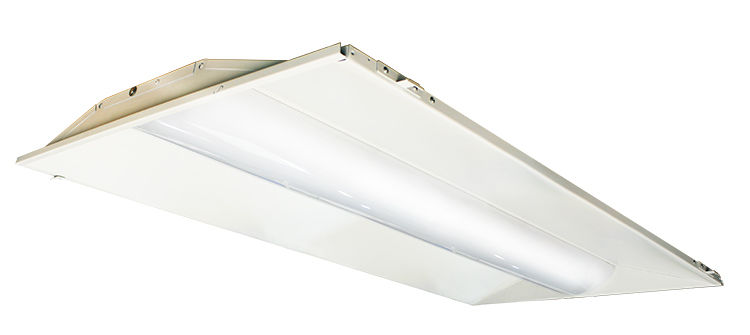

RTR-2X4-52W-40K-D
RTR-2X4-52W-40K-D
Technical Specs
- :: See application below
- :: Input Voltage: 120~277VAC, 50/60Hz
- :: Housing: Steel base with white powder coating
- :: Steel Thickness: 24 Gauge
- :: Lens: Frosted diffuse PC lens
- :: CRI: >80
- :: Dimmable: 0~10V dimming
- :: IP rating: IP20 (Indoor)
- :: Operating Temperature: -4°F~131°F
- :: Life Span: 50,000 hours
- :: Retrofit baskets included
- :: Replaces prismatic lens on standard fluorescent troffer fixtures to create a modern & efficient office environment
Applications
- :: Replaces door frame & lens of traditional fluorescent fl at-lens troffer fixtures
- :: No need to remove old fixture; simply remove and discard the door frame of the existing fixture; place to adapter brackets (included) in the existing fixture; hinge this retrofit unit to the fixture; disconnet the balast; connect the wires to the retrofit unit and close
