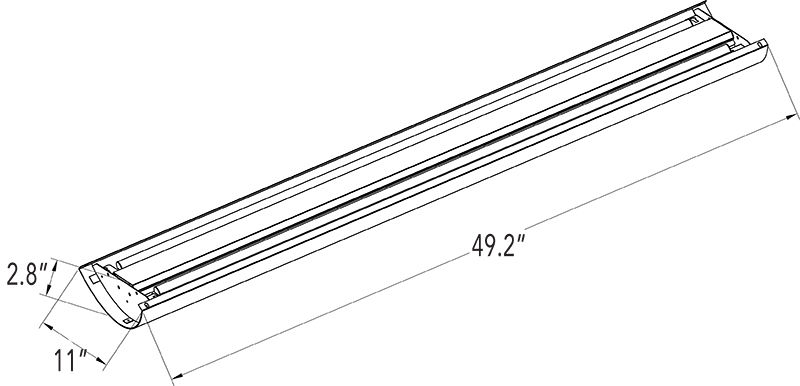

SCLP-UD-4FT-60W-MCT-D

SCLP-UD-4FT-60W-MCT-D

Technical Specs

  • :: Voltage: 120-277V AC 60Hz
  • :: Wattage: 40W/20W
  • :: Power Factor: >0.95
  • :: Efficacy: 115 LPW
  • :: THD: <20%
  • :: Housing: Anodized Aluminum
  • :: Finish: Powder Coated White
  • :: Ambient Temperature: -22°F to +104°F
  • :: 5-year Warranty
  • :: Multi CCT (Selectable switch is inside the fixture) Lens: Louver in center & Perforated Baskets on the sides
  • :: High Quality LED Chips provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
  • :: Dimmable: 0~10V Dimmable
  • :: Lumens Range: 4400LM/ 2100LM
  • :: Uplight: 40W, Downlight: 20W Or 60W
  • :: Rotatable LED Light Module, can be rotated down (60W down light)
  • :: Color Temperatures: 3500K/ 4000K/ 5000K
  • :: Color Rendering Index: CRI ≥ 80
  • :: Rated Life: 50,000 Hrs

Applications

  • :: Storage rooms
  • :: Offices
  • :: Conference rooms
  • :: Retail
  • :: Reception Areas
  • :: Hallways
  • :: Education Facilities

Features

  • LM 79 89
  • UL Listed
  • 5 year warranty
  • Dimming 0-10V
  • MCT3

ACCESSORIES

Product NameDescription
image description
SCLP-UD-CB
image description

SPEC

image description

CAT

Coupling Bracket
ADJ. 6FT 1/16in SINGLE SUSPENSION CANOPY SET WITH Y DOUBLE KEYHOLE END CONNECTORS
