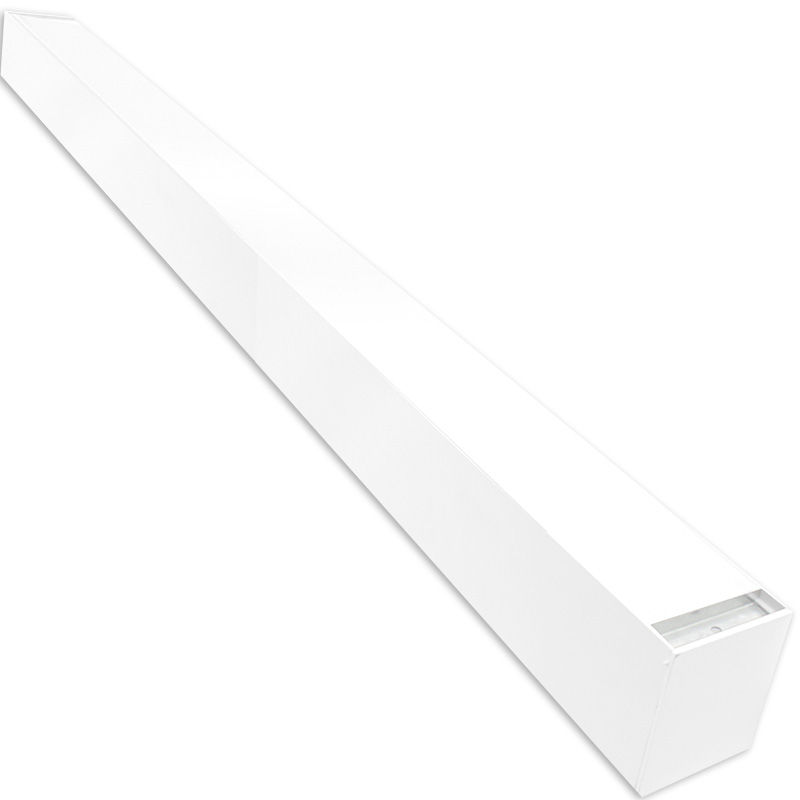

SCX-6FT-60W-MCT4-D-IND

LED 2-3/4" Superior Architectural Seamless Linear Indirect Up Lights, 60W, 3000K/3500K/4000K/5000K

Technical Specs

  • :: Voltage: 120-277VAC 50/60Hz
  • :: Wattage: 60W
  • :: Power Factor: >0.95
  • :: Total Harmonic Distortion: ≤ 20 %
  • :: Efficacy: 110 LPW
  • :: Low Profile Modern Design
  • :: Aluminum Housing With Matte White Finish
  • :: Lens Type: Opal Polycarbonate Lens
  • :: Lens Snaps into Housing
  • :: IP Rating: IP54
  • :: Operating Temperature: -13°F~104°F
  • :: Suspended, Requires Suspension Cables (Not Included) See Page 2
  • :: Power Cord comes out through the Suspension Hole on the End of the Fixture from the Top
  • :: Dimmable: 0~10V Dimming
  • :: Total Lumens: 6600LM
  • :: Color Temperatures: 3000K/3500K/4000K/5000K
  • :: Multi-CCT(Selectable Switch Inside Fixture)
  • :: Color Rendering Index: CRI ≥ 80
  • :: 50,000 Hours Rated Life
  • :: 5-Year Warranty
  • :: Beam Angle: 104.8°(H) x 100.5°(V)

Applications

  • :: Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions
  • :: It can be used in any indoor applications

Features

  • Dimming 0-10V
  • DAMP
  • MCT4
  • cUL
