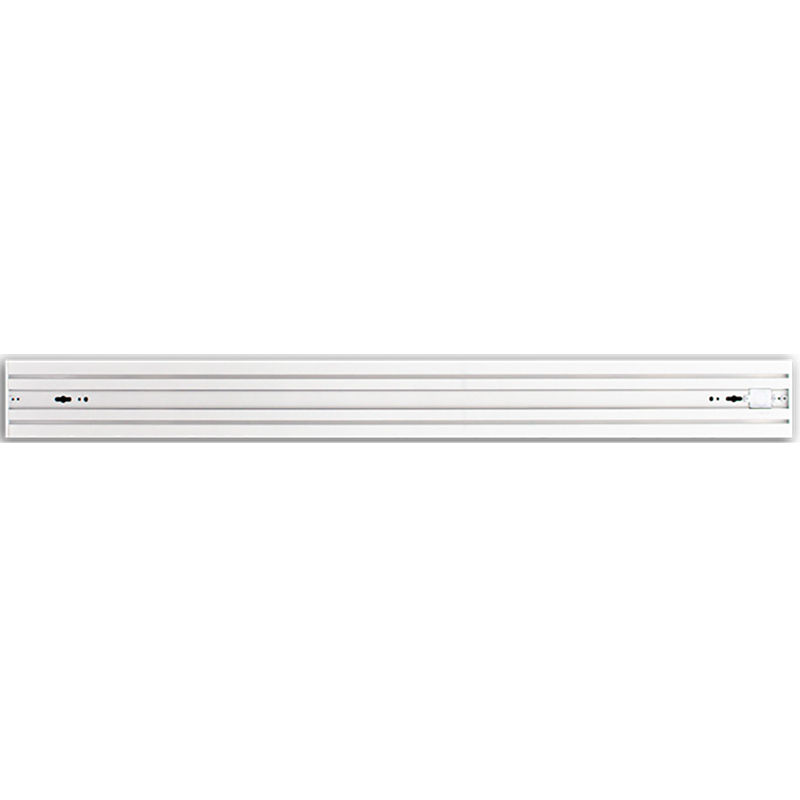

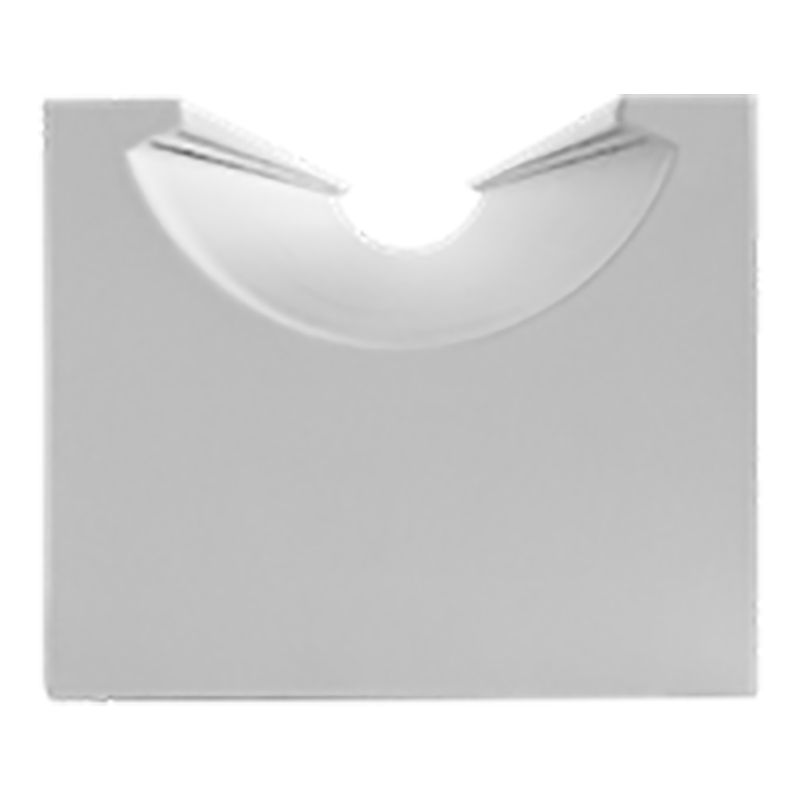

SCX4-4FT-40W-MCT-D-IDL
LED 4" Superior Architectural Indirect Linear Lights, 40W, 3000K/3500K/4000K
Technical Specs
- :: Voltage: 120-277VAC 50/60Hz
- :: Wattage: 40W
- :: Power Factor: >0.95
- :: LPW: 110/112/115/122
- :: Total Harmonic Distortion: ≤ 20 %
- :: Low Profile Modern Design
- :: Aluminum Housing with Matte White Finish
- :: Custom Colors Available
- :: Mounting Options: Surface, Suspended, Wall, Recessed
- :: IP Rating: IP54
- :: Operating Temperature: -13°F~104°F
- :: Adjustable Suspension Brackets Provided on Top of the Fixtures
- :: Dimmable: 0~10V Dimming
- :: Total Lumens: 4954LM
- :: Color Temperatures: 3000K/3500K/4000K
- :: Multi-CCT (Selectable Switch Inside Fixture)
- :: Color Rendering Index: CRI ≥ 80
- :: 50,000 Hours Rated Life
- :: 5-Year Warranty
- :: Beam Angle: 104.8°(H) x 100.5°(V)
Applications
- :: Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions
- :: It can be used in any indoor applications
Features
OPTIONS
