SCX4-IP66-SUS-8FT-80-160W-MCTP

:: Voltage: 120-277VAC 50/60Hz
:: Wattage: 80W/120W/160W
:: Power Factor: >0.95
:: LPW: 105
:: Total Harmonic Distortion: ≤ 19 %
:: Power Cord is Not Included
:: Wall Mounting Kit Included

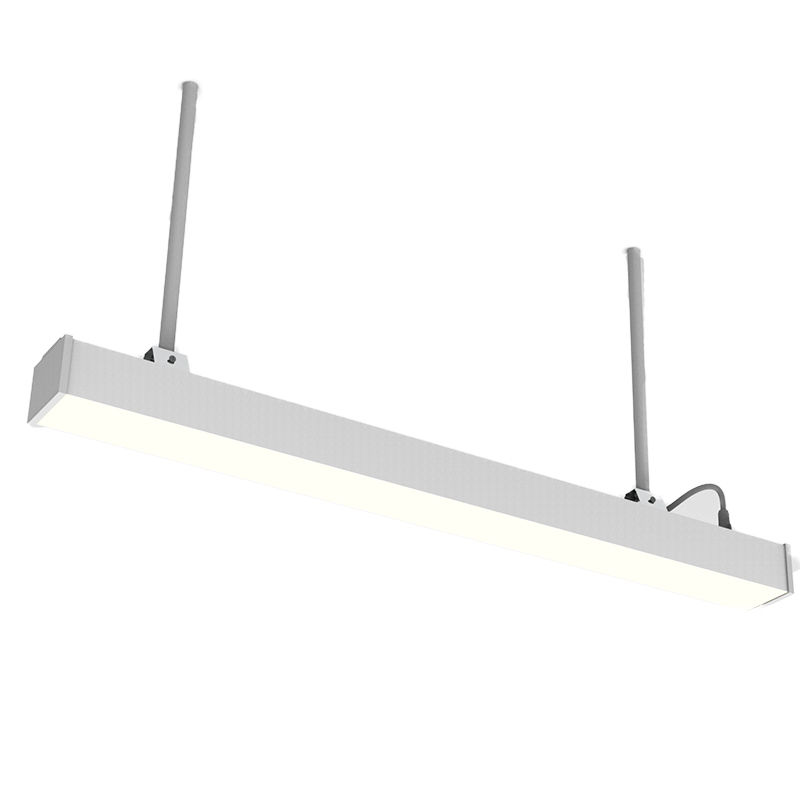

:: Suspended With Optional Stainless Steel Down Rod Kits or Heavy-Duty Aircraft Cables
:: Waterproof Male & Female Connectors Pre-Installed On The Top Near The Two Ends
:: Low Profile Modern Design
:: Aluminum Housing With Sandy White Finish
:: Mounting Options: Suspended, Wall
:: IP Rating: IP66 Wet Location Only
:: Operating Temperature: -22°F to +104°F
:: 5-Year Warranty
:: MCTP: Multi Color Temperature and Power (Selectable Switch Fixture)
:: Dimmable: 0~10V Dimming
:: Total Lumens: 8400LM Max.
:: Color Temperatures: 3500K/4000K/5000K
:: Multi-CCT(Selectable Switch Inside Fixture)
:: Color Rendering Index: CRI ≥ 80
:: 50,000 Hours Rated Life
:: Beam Angle: 105°(H) x 103.7°(V)

:: Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions

ACCESSORIES

Product Name	Description
SCX4-IP66-ACPT-6FT SPEC	6ft. Ac Pigtail with Female Wet Loc. Connector
SCX4-IP66-ACPT-10FT SPEC	SCX4-IP66 10Ft Ac Pigtail With Female Wet Loc. Connector
SCX4-IP66-JUMP-6IN SPEC	6In Ac Jump Cable With Male And Femail Wet Loc. Connector
SCX4-IP66-JUMP-12IN SPEC	SCX4-IP66 12In Ac Jump Cable With Male And Female Wet Loc. Connector
SCX4-IP66-CB SPEC	SCX4-IP66 Coupling Bracket
SCX4-IP66-RODKIT-18IN SPEC	SCX4-IP66 18In Suspension Rod Kit
SCX4-IP66-RODKIT-24IN SPEC	SCX4-IP66 24In Suspension Rod Kit
