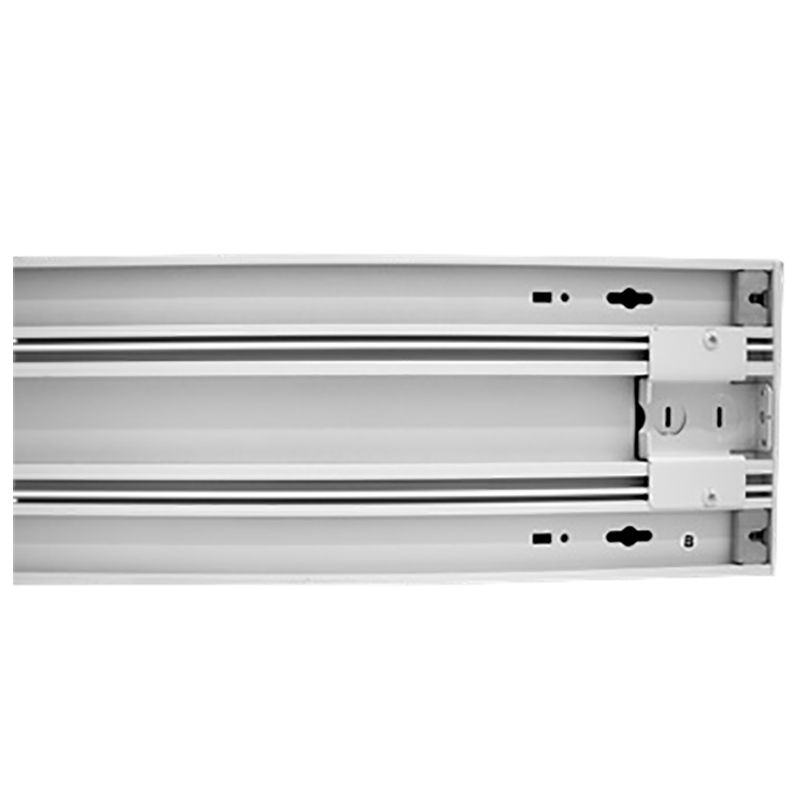

SCX6-8FT-80-120W-MCTP-LUV-WH

:: Voltage: 120-277 AC 50/60Hz
:: Wattage: 80W/100W/120W
:: Power Factor: >0.95
:: LPW: 105/110/115
:: Total Harmonic Distortion: ≤ 20 %
:: Low Profile Modern Design
:: Aluminum Housing with Matte White Finish
:: Custom Colors Available
:: Lens Snaps into Housing
:: Make Different Connections Via T/L/X Joints on Both Ends
:: Mounting Options: Surface, Suspended, Wall, Recessed
:: IP Rating: IP54
:: Operating Temperature: -13°F~104°F
:: Adjustable Suspenstion Brackets Provided on Top of The Fixtures
:: Dimmable: 0~10V Dimming
:: Total Lumens: 13800LM Max
:: Color Temperatures: 3000K/3500K/4000K/5000K
:: MCTP: Multi Color Temperature and Power (Selectable the switches are in the fixture under the lens)
:: Color Rendering Index: CRI ≥ 80
:: 50,000 Hours Rated Life
:: 5-Year Warranty
:: Beam Angle: 104.8°(H) x 100.5°(V)

:: Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions
:: It can be used in any indoor applications

ACCESSORIES

Product Name	Color Temp	Dimensions	Description
SCX6-L-MCTP SPEC	3000K/3500K/4000K/5000K	12” X 5.98”X 5.98”	Joint Type: L
SCX6-T-MCTP SPEC	3000K/3500K/4000K/5000K	12” X 18” X 5.98”	Joint Type: T
SCX6-X-MCTP SPEC	3000K/3500K/4000K/5000K	18” X 5.98”	Joint Type: X
SCX6-IC-MCTP SPEC	3000K/3500K/4000K/5000K	12” X 12” X 5.98” X 5.98”	Joint Type: Inside Corner

OPTIONS

OPT-SCX6-FMR-8FT

OPT-SCX-MIF-8FT

OPT-SCX-MIF-L

OPT-SCX-MIF-T

OPT-SCX-MIF-X

OPT-SCX-MIF-IC

OPT-SCX-TBAR-8FT

OPT-CLR-CUSTOM

OPT-SEN-SCX6
