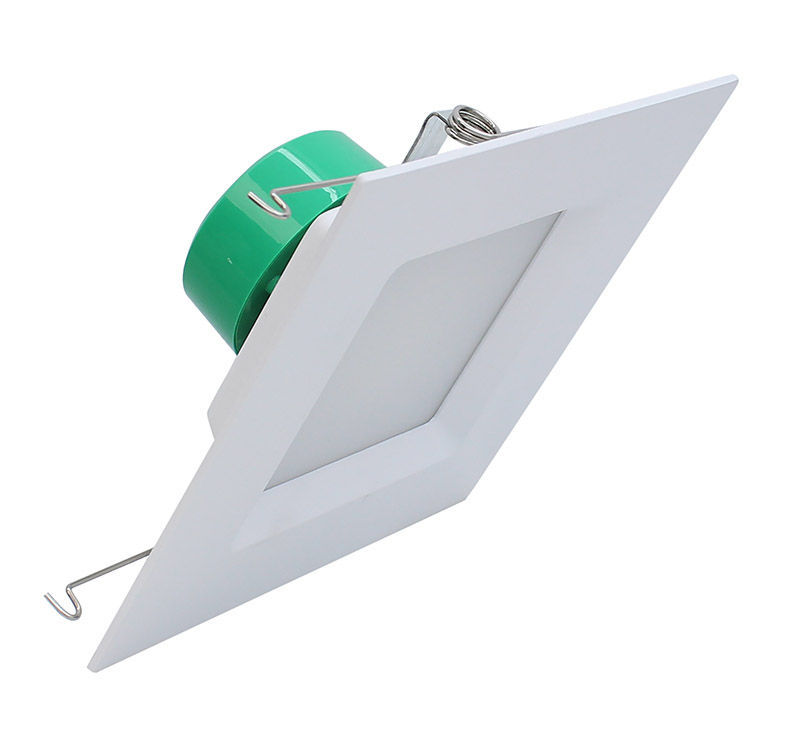

SDL6-MCT5

SDL-LED Multi-CCT Square Downlights Baffle/Smooth Trims

Technical Specs

  • :: Die-cast aluminum with white powder coat finish
  • :: Can rotate after installation to align
  • :: Optics: White translucent acrylic lens
  • :: Lens: 0.125" white translucent acrylic
  • :: CRI: 90
  • :: Working voltage: 120V AC
  • :: Dimmable
  • :: LED: Seoul DOB (Driver On Board) Technology
  • :: Power factor: 90% +
  • :: Suitable for damp locations when gasket is used
  • :: Maximum Ambient Temperature: 104°F
  • :: 5-year warranty
  • :: ETL-listed
  • :: Energy Star-rated

Applications

  • :: LED retrofit trim have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets,storage areas, attics, corridors, or general lighting solutions for residential and commercial applications

Features

  • Dimmable
  • ETL Listed
  • Title 24
