SPEC SHEET

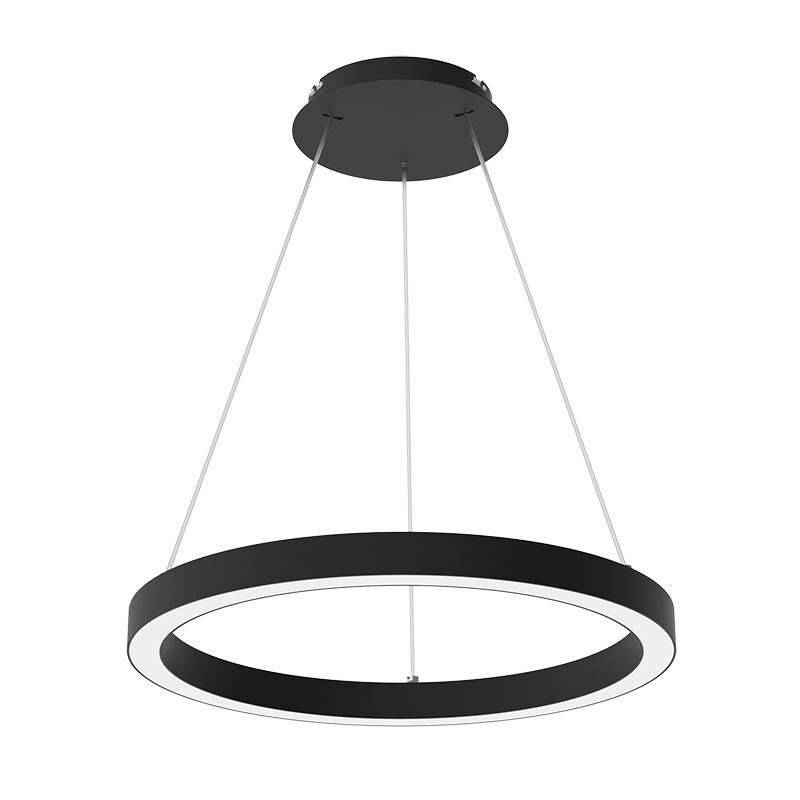

SRC-D24UD-MCTP-BK

:: Voltage: 120-277V AC 50/60Hz
:: Wattage: 20W/30W/40W (Uplight Switchable)/20W/30W/40W (Downlight Switchable)
:: Power Factor: >0.98
:: LPW: 75 LM/W
:: Aluminum Housing With Sandy Black Finish
:: Three 10FT Adjustable Suspension Cables
:: Opal Polycarbonate Lens - Direct and Indirect Light
:: Operating Temperature: -46°F to 104°F
:: IP Rating: IP20
:: 5-Year Warranty
:: Dimmable: 0~10V Dimming
:: MCTP: Multi Color Temperature and Power (Selectable, The Switches Are Inside The Canopy)
:: Total Lumens: Up: 1560/2340/3120LM Down: 1500/2250/3000LM
:: Color Temperatures: 3000K/3500K/4000K
:: Color Rendering Index: CRI ≥ 80,90 Optional
:: Beam Angle: 114°(H) x 114°(V)
:: 50,000 Hours Rated Life

:: Ideal for Office, Architectural Lighting and Create Different Visual Experience.
