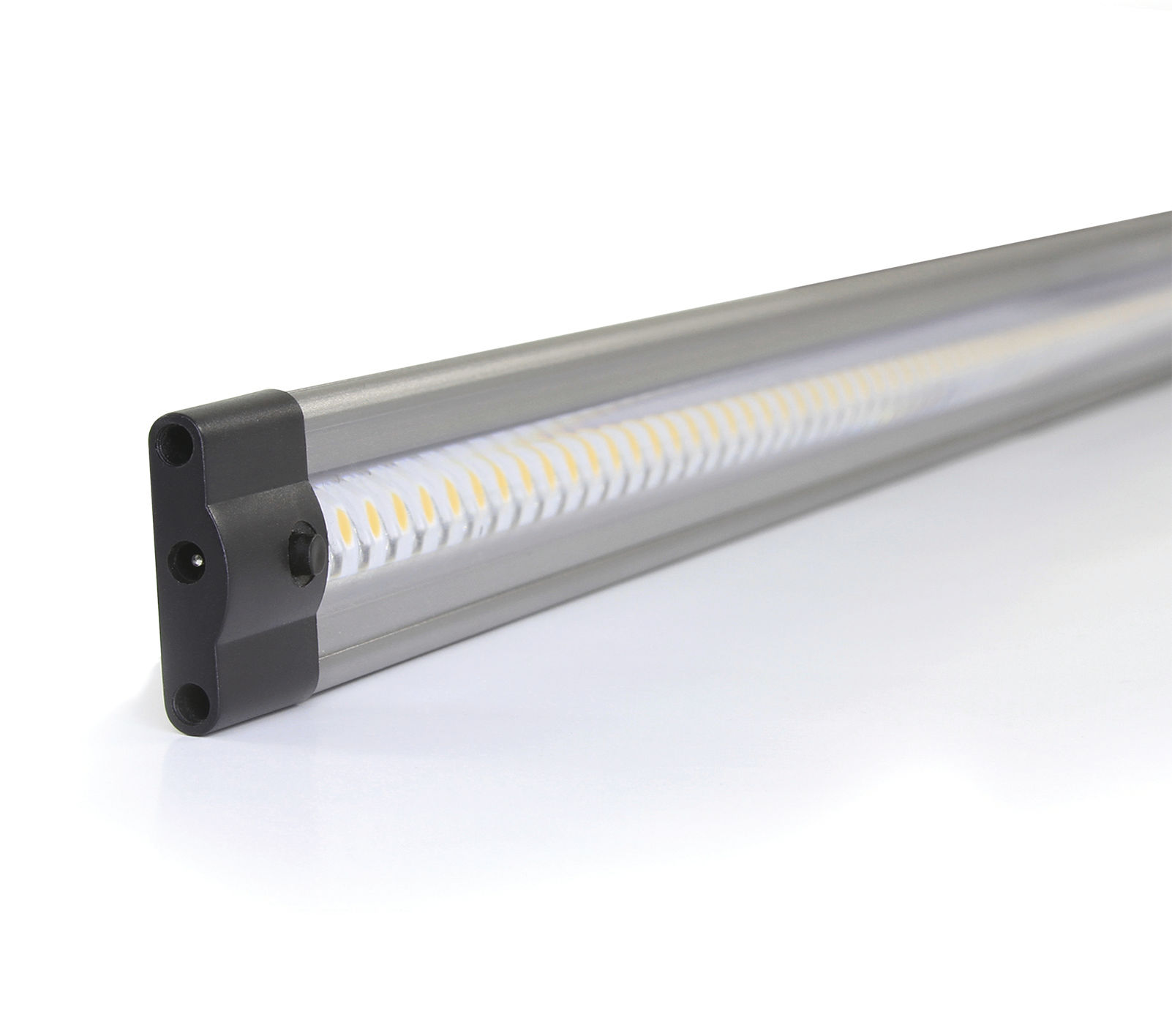

UC20WW
UC20WW
Technical Specs
- :: Requires electronic or hard wired magnetic drivers
- :: Ultra-low profile only 1/4" deep
- :: Extruded aluminum housing with white powder coat finish
- :: Polycarbonate end caps with universal feed thru mono-pin receptacle
- :: Acrylic lens (.125" thickness).
- :: Highly efficient SMD 3528 chip technology
- :: Integral switch, push on push off
- :: Mounting hardware and coupler included
- :: Working voltage: 24V DC driver required
- :: Plug in electronic or hard wired magnetic drivers available
- :: Suitable for interior applications only
- :: Ambient temperature rating:- 20° C (4°F) to +40°C (104°F)
- :: Very low profile, easy to install, cool to the touch
- :: High brightness with excellent color rendition and years of maintenance free operation
- :: Wide selection of mounting hardware, accessories and LED drivers
